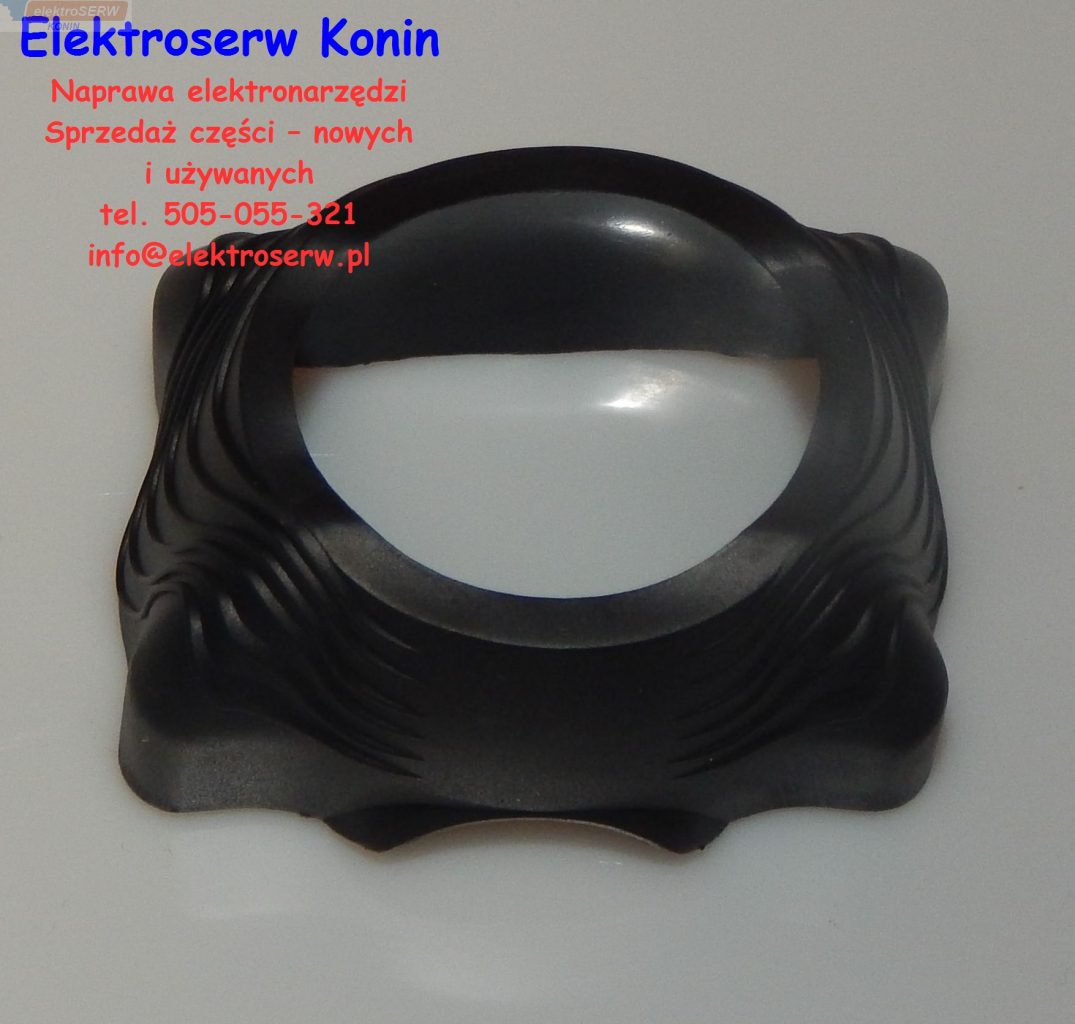

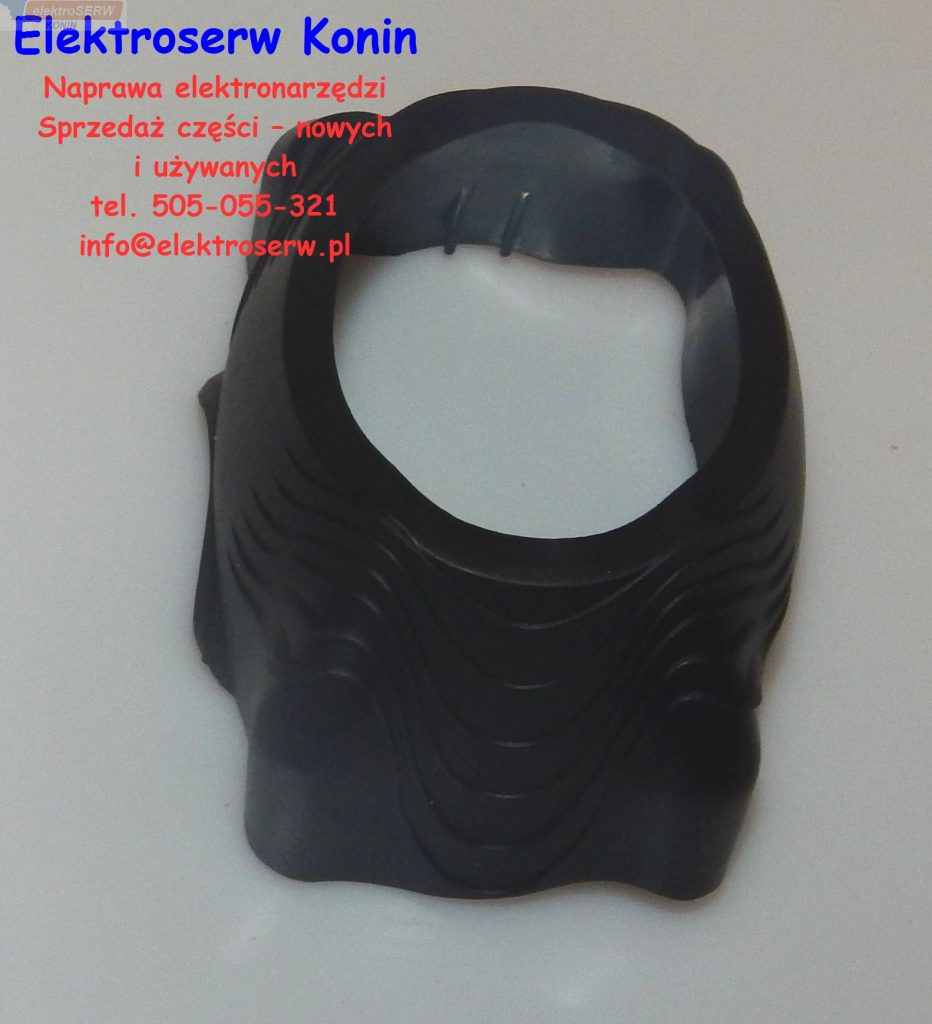

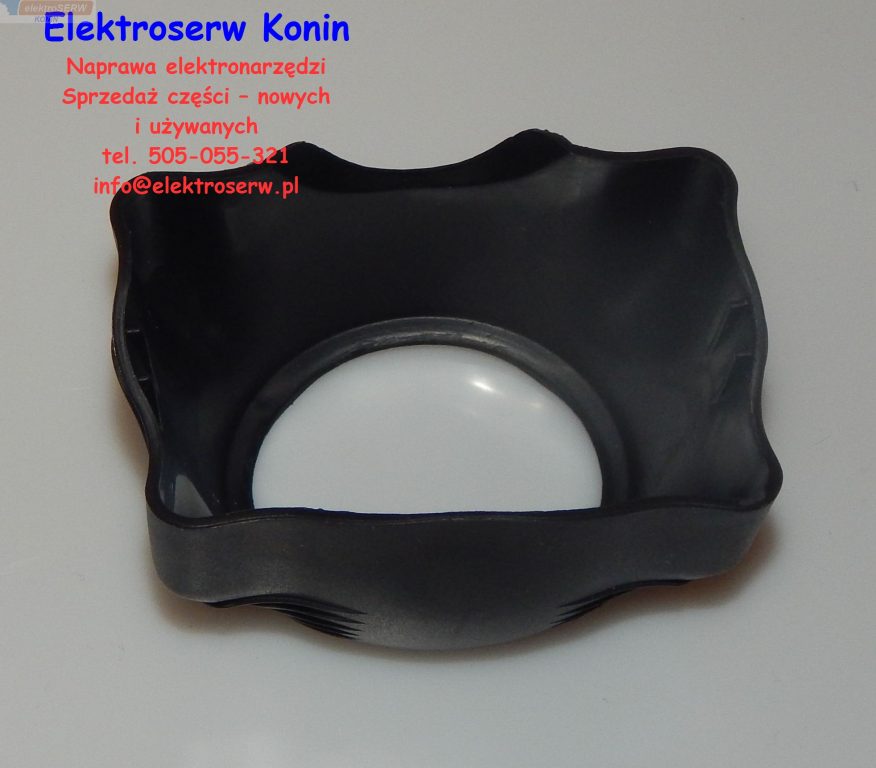

Hitachi osłona do WH14DMR 324239
Hitachi - osłona - nowa oryginalna
Nr katalogowy: 324239
Pozycja na schemacie - 6
Zastosowanie: WH14DL WH14DMR WH18DL WH18DMR WR14D WR14DMR WR18DL WR18DMR

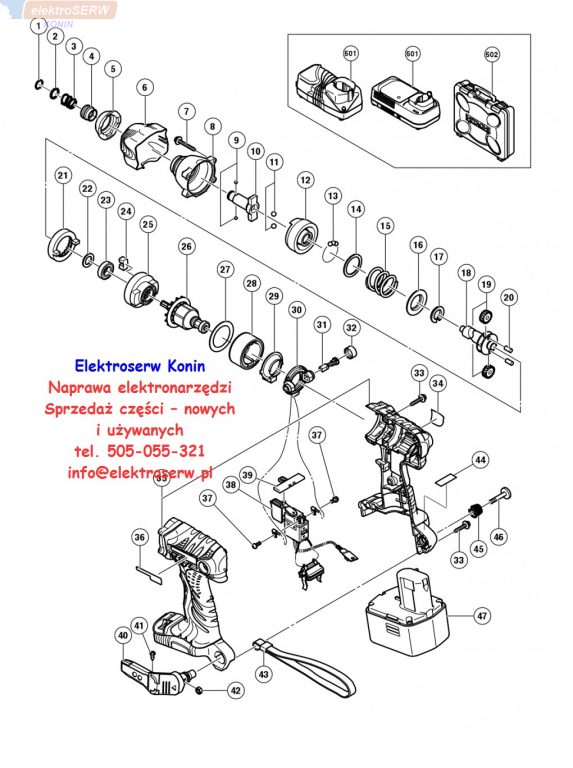

WH14DMR
|
Pozycja na schemacie |
NR KAT. CZĘŚCI | NAZWA CZĘŚCI |
| 1 | 315984 | RETAINING RING |
| 2 | 315983 | WASHER (D) |
| 3 | 321657 | GUIDE SPRING (B) |
| 4 | 322717 | GUIDE SLEEVE (D) |
| 5 | 324238 | FRONT CAP (C) |
| 6 | 324239 | PROTECTOR (D) |
| 7 | 307851 | TAPPING SCREW (W/SP. WASH |
| 8 | 324216 | HAMMER CASE |
| 9 | 319535 | STEEL BALL D3.5 (10 PCS.) |
| 10 | 324236 | ANVIL |
| 10 | 324602 | ANVIL (B) |
| 11 | 959154 | STEEL BALL D5.556 (10 PCS.) |
| 12 | 324218 | HAMMER |
| 13 | 959148 | STEEL BALL D3.175 (10 PCS.) |
| 14 | 315978 | WASHER (J) |
| 15 | 324224 | HAMMER SPRING (F) |
| 16 | 316172 | WASHER (S) |
| 17 | 324222 | STOPPER (B) |
| 18 | 324232 | SPINDLE |
| 19 | 321667 | IDLE GEAR SET (2 PCS.) |
| 20 | 324234 | NEEDLE ROLLER (A) |
| 21 | 320877 | RING GEAR (C) |
| 22 | 319911 | WASHER (E) |
| 23 | 6901VV | BALL BEARING 6901VVCMPS2L |
| 24 | 324230 | DAMPER (A) |
| 25 | 324229 | INNER COVER (B) |
| 26 | 360712 | ARMATURE AND PINION SET |
| 27 | 324607 | SIDE YOKE (A) |
| 28 | 324235 | MAGNET (F) ASSY |
| 29 | 324228 | DUST GUARD FIN (B) |
| 30 | 324226 | BRUSH BLOCK |
| 31 | 999054 | CARBON BRUSH 5X6X11.5 (1 PAI |
| 32 | 319918 | BRUSH CAP |
| 33 | 302086 | TAPPING SCREW (W/FLANGE) D4X20 (BLACK) |
| 35 | 324237 | HOUSING (A).(B) SET |
| 36 | 324513 | HITACHI PLATE |
| 37 | 994532 | MACHINE SCREW (W/SP. WASHER) M3X5 |
| 38 | 321533 | DC-SPEED CONTROL SWITCH |
| 39 | 324225 | PUSHING BUTTON (B) |
| 40 | 321918 | HOOK ASS'Y (W/LIGHT) |
| 41 | 321672 | TAPPING SCREW D2X6 |
| 42 | 320288 | V-LOCK NUT M5 |
| 43 | 306952 | STRAP (BLACK) |
| 45 | 319926 | HOOK SPRING |
| 46 | 320881 | SPECIAL SCREW (A) M5 |
| 47 | 322883 | BATTERY EB 1426H (W/ENGLISH N.P.) |
| 47 | 315129 | BATTERY EB 14B (W/ENGLISH N.P.) |
| 47 | 315130 | BATTERY EB 14B (W/ENGLISH N.P.) |
| 47 | 318372 | BATTERY EB 1430H (W/ENGLISH N.P.) |
| 502 | 323230 | CASE |
| 601 | 321823 | DRILL CHUCK AND |
| 602 | 309922 | GREASE FOR IMPACT DRIVER (500G) |
| 603 | 992671 | BŁĄD:509 |
| 604 | 992672 | BŁĄD:509 |
| 605 | 996177 | NON-MAGNETIC HEX. SOCKET 8MM 65L |
| 606 | 985329 | NON-MAGNETIC HEX. SOCKET 10MM 65L |
| 607 | 996178 | NON-MAGNETIC HEX. SOCKET 12MM 65L |
| 608 | 996179 | NON-MAGNETIC HEX. SOCKET 13MM 65L |
| 609 | 996180 | NON-MAGNETIC HEX. SOCKET 14MM 65L |
| 610 | 996185 | NON-MAGNETIC HEX. SOCKET 15MM 65L |
| 611 | 996181 | NON-MAGNETIC HEX. SOCKET 16MM 65L |
| 612 | 996182 | NON-MAGNETIC HEX. SOCKET 17MM 65L |
| 613 | 996186 | NON-MAGNETIC HEX. SOCKET 19MM 65L |
| 614 | 996197 | HEX. SOCKET (LONG) 21MMX166L |
| 615 | 996184 | BIT PIECE |
| 616 | 987575 | CHUCK WRENCH FOR 10VLB-D,10VLR- |
| 617 | 930119 | CHUCK WRENCH 6.5G |
| 618 | 307543 | CHUCK ADAPTER |
