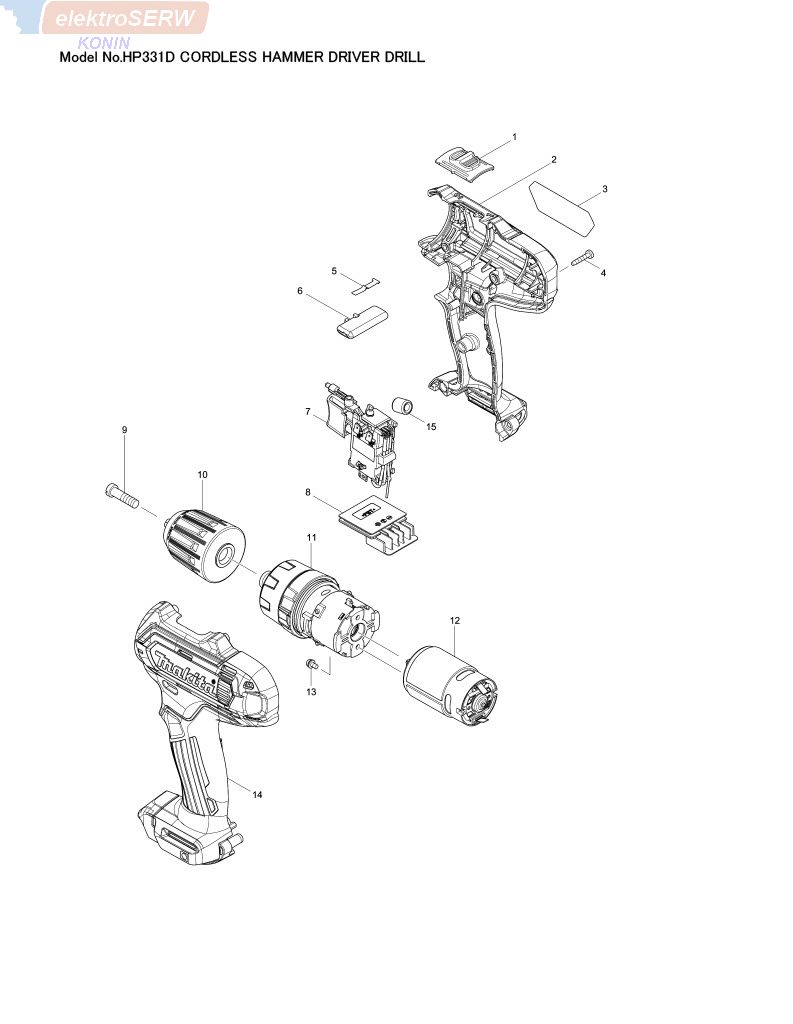

* Lista części od HP331D

pozycja artykułu, nr katalogowy, opis produktu, ilość:

1; 126233-0  SPEED CHANGE LEVER ASSEMBLY;  1

1; 231433-0  COMPRESSION SPRING 4;  2

2; 183B50-3  HOUSING SET;  1

2; 252126-6  HEX. LOCK NUT M4-7;  2

3; 851H13-0  HP331D NAME PLATE;  1

003-1; 851H12-2  HP331D NAME PLATE;  1

4; 266429-2  TAPPING SCREW 3X16;  9

5; 232239-9  LEAF SPRING;  1

6; 456039-5  F/R CHANGE LEVER;  1

7; 632F43-6  SWITCH UNIT;  1

7; 620463-0  LED CIRCUIT;  1

007-1; 632J77-3  SWITCH UNIT;  1

007-1; 620625-0  LED CIRCUIT;  1

8; 644813-5  TERMINAL;  1

9; 251468-5  - FLAT HEAD SCREW M6X22;  1

10; 763229-6  KEYLESS DRILL CHUCK 10;  1

11; 123502-0  GEAR ASS'Y;  1

12; 629167-1  DC MOTOR;  1

13; 911003-8  PAN HEAD SCREW M3X6;  2

14; 183B50-3  HOUSING SET;  1

14; 252126-6  HEX. LOCK NUT M4-7;  2

A01; 251314-2  + SCREW M4X12;  1

A02; 346909-5  HOOK;  1

A03; 784202-3  PHILLIPS BIT 2-45;  1

A04; 456128-6  BATTERY COVER;  1

A05B; ***DC10SB  DC10SB BATTERY CHARGER;  1

A05; ***DC10WD  DC10WD BATTERY CHARGER;  1

A06B; 197406-2  BATTERY BL1041B SET;  2

A06; 197396-9  BATTERY BL1021B SET;  2

A06D; 197393-5  BATTERY BL1016 SET;  2

A06-1B; 197406-2  BATTERY BL1041B SET;  2

A06-1; 197396-9  BATTERY BL1021B SET;  2

A06-1D; 191B84-2  BATTERY BL1016 SET;  2

A06-2B; 191B86-8  BATTERY BL1041B SET;  2

A06-2; 191B85-0  BATTERY BL1021B SET;  2

A07; 821661-1  PLASTIC CARRYING CASE;  1

A07B; 417724-5  LATCH;  2

A07E; 821697-0  PLASTIC CASE;  1

A07E; 452143-8  SHAFT;  2

A07E; 455522-9  SLIDE LATCH;  2

A08E; D-52336  74PCS. BIT SET, MM, TYPE NZ;  1
