* Lista części do DVC750L - akumulatorowy odkurzacz

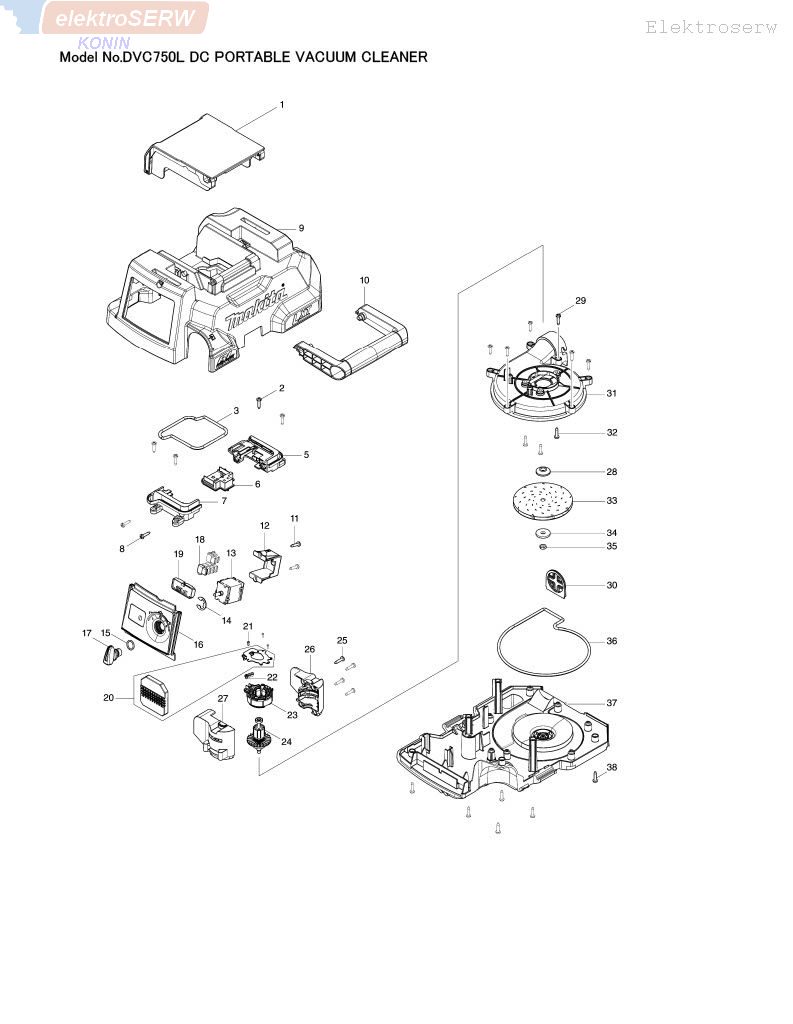

pozycja na schemacie, nr katalogowy, opis produktu, ilość:

1; 458880-2  BATTERY COVER;  1

2; 266326-2  TAPPING SCREW 4X18;  4

3; 422368-8  SEAL RING E;  1

4; 855A83-9  DVC750L SERIAL NO. LABEL;  1

5; 183K69-6  TERMINAL CASE SET;  1

6; 644809-6  TERMINAL;  1

7; 183K69-6  TERMINAL CASE SET;  1

8; 266326-2  TAPPING SCREW 4X18;  2

9; 140G02-7  TOP COVER COMPLETE;  1

10; 458886-0  HANDLE;  1

11; 266326-2  TAPPING SCREW 4X18;  2

12; 451343-7  SWITCH HOLDER;  1

13; 651382-9  SWITCH 1703.4702;  1

14; 961062-2  STOP RING E-12;  1

15; 213176-6  O RING 14;  1

16; 140G01-9  SWITCH BASE COMPLETE;  1

C10; 818F81-4  INDICATION LABEL;  1

17; 457857-4  SWITCH LEVER;  1

18; 686023-8  RECEPTACLE SLEEVE;  6

19; 620A05-6  INDICATOR CIRCUIT;  1

20; 620A04-8  CONTROLLER;  1

21; 266490-9  TAPPING SCREW PT 2X6;  3

22; 652069-6  FLAT HEAD SCREW M3X6;  3

23; 629385-1  STATOR;  1

24; 619540-3  ROTOR;  1

25 ;266326-2  TAPPING SCREW 4X18;  4

26; 183K70-1  MOTOR HOUSING SET;  1

27; 183K70-1  MOTOR HOUSING SET;  1

28; 313062-2  FLANGE;  1

29; 266326-2  TAPPING SCREW 4X18;  6

30; 458973-5  FAN COVER GUARD;  1

31; 458883-6  FAN COVER;  1

32; 266326-2  TAPPING SCREW 4X18;  3

33; 240178-9  FAN 104;  1

34; 253752-4  FLAT WASHER 8;  1

035A; 931303-0  HEX. NUT M6;  1

035-1A; 252268-6  HEX. NUT M6;  1

035-1; 252268-6  HEX. NUT M6;  1

36; 422366-2  SEAL RING C;  1

037A; 458881-0  TANK COVER;  1

037-1A; 162641-1  TANK COVER COMPLETE;  1

C10; 422450-3  SPONGE SHEET;  1

037-1; 162641-1  TANK COVER COMPLETE;  1

037-1B; 422450-3  SPONGE SHEET;  1

38; 266326-2  TAPPING SCREW 4X18;  6

39; 140G00-1  FLOAT COMPLETE;  1

039-1; 140G00-1  FLOAT COMPLETE;  1

40; 422364-6  SEAL RING A;  1

41; 162518-0  FILTER COMPLETE;  1

42; 422367-0  SEAL RING D;  1

43; 911123-8  PAN HEAD SCREW M4X14;  2

44; 458888-6  INLET;  1

45; 422365-4  SEAL RING B;  1

46; 140G71-8  TANK COMPLETE;  1

C10; 162271-8  LATCH;  2

47; 855A75-8  DVC750L NAME PLATE;  1

48; 911123-8  PAN HEAD SCREW M4X14;  2

49; 458887-8  HOSE HOOK;  1

A01; 140G04-3  HOSE COMPLETE;  1

A02; 458891-7  WIDE NOZZLE;  1

A03; 458919-1  SASH NOZZLE;  1

A04; 162523-7  SHOULDER BELT;  1

A10C; 191M39-3  WET FILTER SET;  1

C10; 140G00-1  FLOAT COMPLETE;  1

C20; 162788-1  WET FILER COMPLETE;  1

A10-1C; 191M39-3  WET FILTER SET;  1

C10; 140G00-1  FLOAT COMPLETE;  1

C11; 140G00-1  FLOAT COMPLETE;  1

C20; 162788-1  WET FILER COMPLETE;  1
