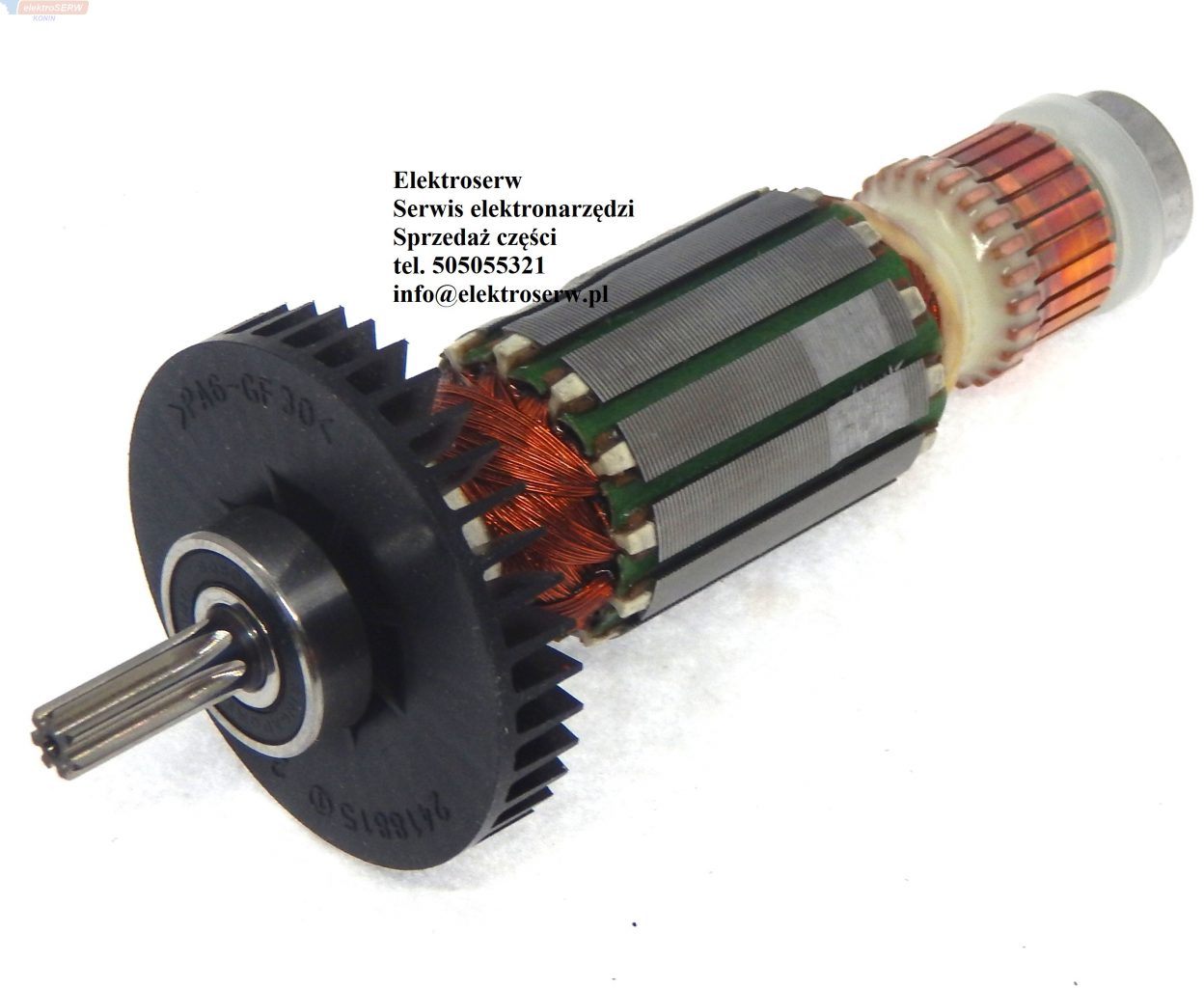

Makita - wirnik.

Zastosowanie: TW0200
Na katalogowy:  517448-4

Item Sub Parts No. Parts Description Qty

1 421839-2 BUMPER 1

2 153581-4 HAMMER CASE COMPLETE 1

2 C10 213257-6 OIL SEAL 18 1

2 C20 321119-5 SLEEVE 18 1

3 267268-3 FLAT WASHER 19 1

4 231907-1 RING SPRING 10 1

7 324344-7 ANVIL 1

8 324341-3 HAMMER 1

9 216001-0 STEEL BALL 3.5 31

10 267269-1 FLAT WASHER 32 1

11 233377-0 COMPRESSION SPRING 30 1

12 267777-2 CUP WASHER 19 1

13 216007-8 STEEL BALL 6.4 2

14 227092-6 SPUR GEAR 32 2

15 256002-6 PIN 6 2

16 266026-4 TAPPING SCREW BIND CT 4X12 2

17 324339-0 SPINDLE 1

18 253794-8 FLAT WASHER 18 1

19 285709-7 BEARING RETAINER 44 1

20 227093-4 INTERNAL GEAR 71 1

21 213670-8 O RING 58 1

22 153583-0 INTERNAL GEAR COVER COMPLETE 1

23 213373-4 O RING 22 1

24 210005-4 BALL BEARING 608DDW 1

25 241881-5 FAN 52 1

26 517448-4 ARMATURE ASS'Y 220-240V 1

26 D10 INC. 24,25,27,28

27 681652-2 INSULATION WASHER 1

28 211021-9 BALL BEARING 607LLB 1

29 418187-8 BAFFLE PLATE 1

30 593563-8 FIELD ASS'Y 220-240V 1

30 C10 654100-4 RING TERMINAL 2

30 C20 654501-6 CONNECTOR P-1.25 2

31 183612-5 MOTOR HOUSING 1

31 C10 643455-2 BRUSH HOLDER 6X9 2

31 D10 INC. 32

031-1 140021-1 MOTOR HOUSING COMPLETE 1

031-1 C10 643455-2 BRUSH HOLDER 6X9 2

32 819063-3 MAKITA LABEL 1

33 253929-1 CUP WASHER 5 4

34 262001-8 URETHANE RING 5 4

35 266331-9 HEX. SOCKET HEAD BOLT M5X50 4

37 266091-3 TAPPING SCREW 4X50 2

38 417237-6 INSULATION COVER 2

39 418186-0 F/L CHANGE LEVER 1

40 650523-4 SWITCH C3MA-DB 1

42 643550-8 BRUSH HOLDER CAP 5-8 2

43 191940-4 CARBON BRUSH CB-411 1

46 850444-2 NAME PLATE TW0200 1

47 265995-6 TAPPING SCREW 4X18 3

48 418189-4 HANDLE COVER 1

49 265995-6 TAPPING SCREW 4X18 2

50 687052-4 STRAIN RELIEF 1

51 692527-0 POWER SUPPLY CORD 1.0-2-2.5 1

52 682566-8 CORD GUARD 10 1

53 324284-9 HOOK 1

A01 134841-3 SOCKET 24-45 ASS'Y 1

A01 C10 213399-6 O-RING 25 1

A01 C20 268057-9 PIN 4 1

A02 824703-0 PLASTIC CARRYING CASE 1

A02 C10 186347-7 SLIDE LATCH SET 1
