Hilti 366161 o-ring TE56ATC, TE500

Producent: HILTI

Kod producenta: 366161

Kod produktu: 1754

Powiadom mnie o zmianie dostępności Zgłoś błąd w opisie

Opis produktu
Opinie klientów (0)

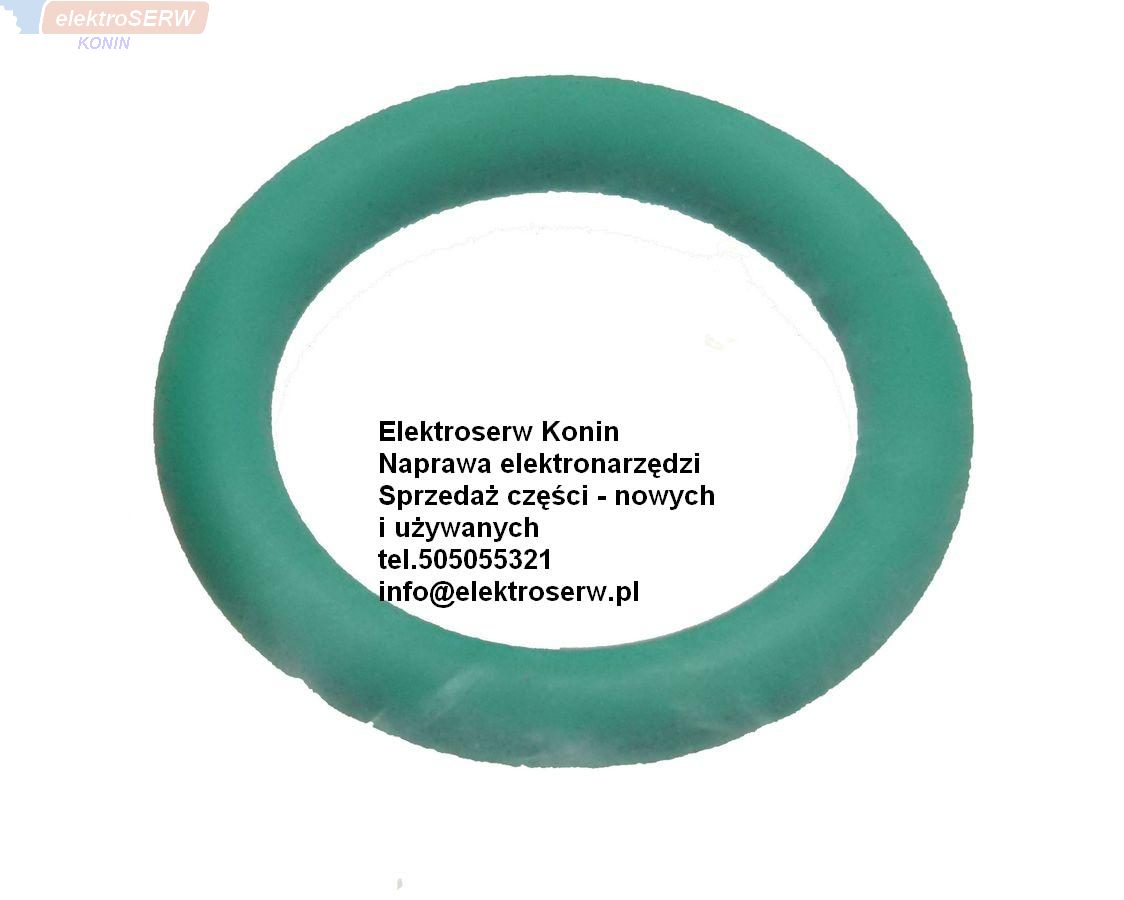

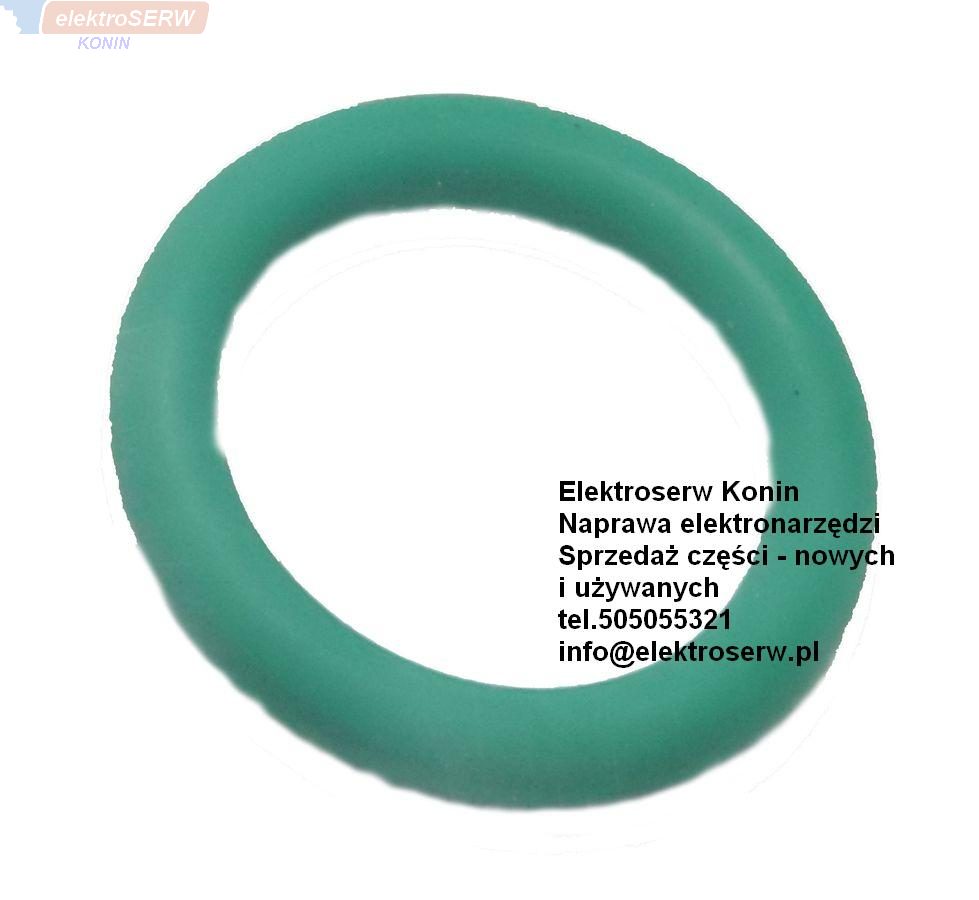

Hilti- o-ring.

Nr katalogowy: 366161

Zastosowanie: TE56ATC, TE500

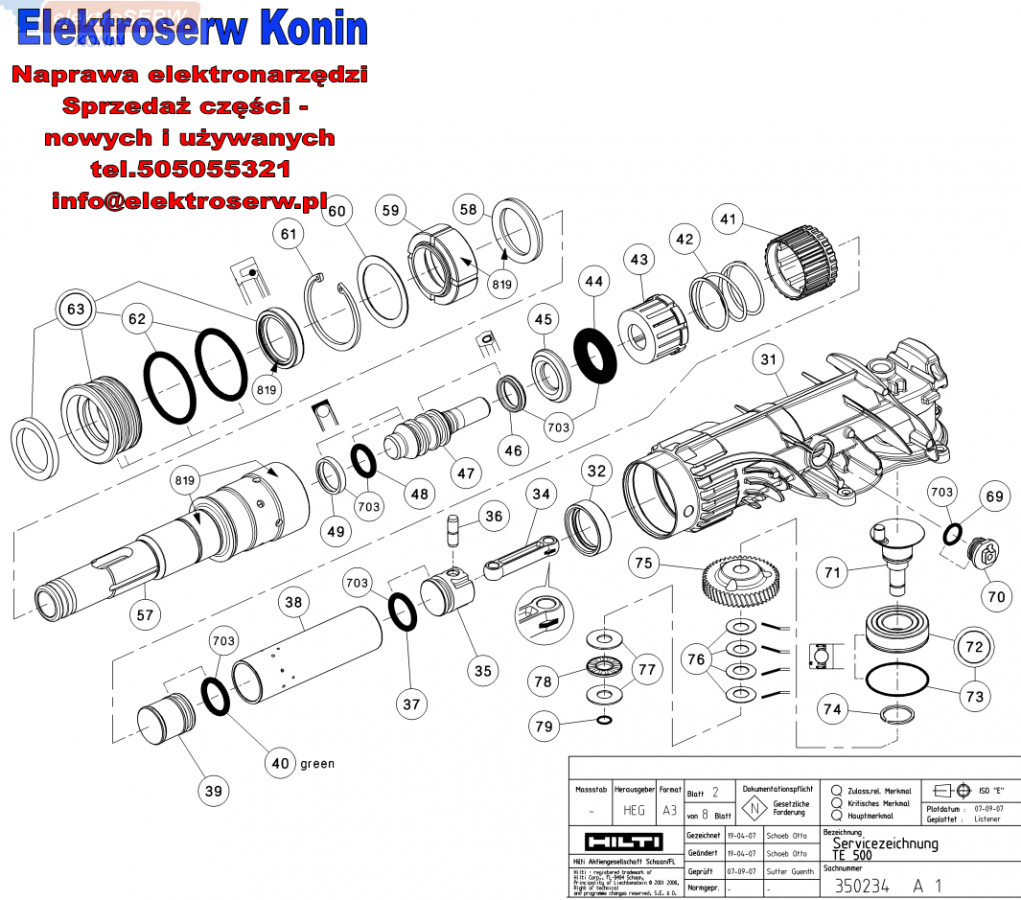

Pozycja na schemacie TE500 nr 48.

Pozycja na schemacie TE56ATC nr 157.

Posiadmy części do elektronarzędzi Hilti -prosimy pytać.

Prowadzimy serwis elektronarzędzi.

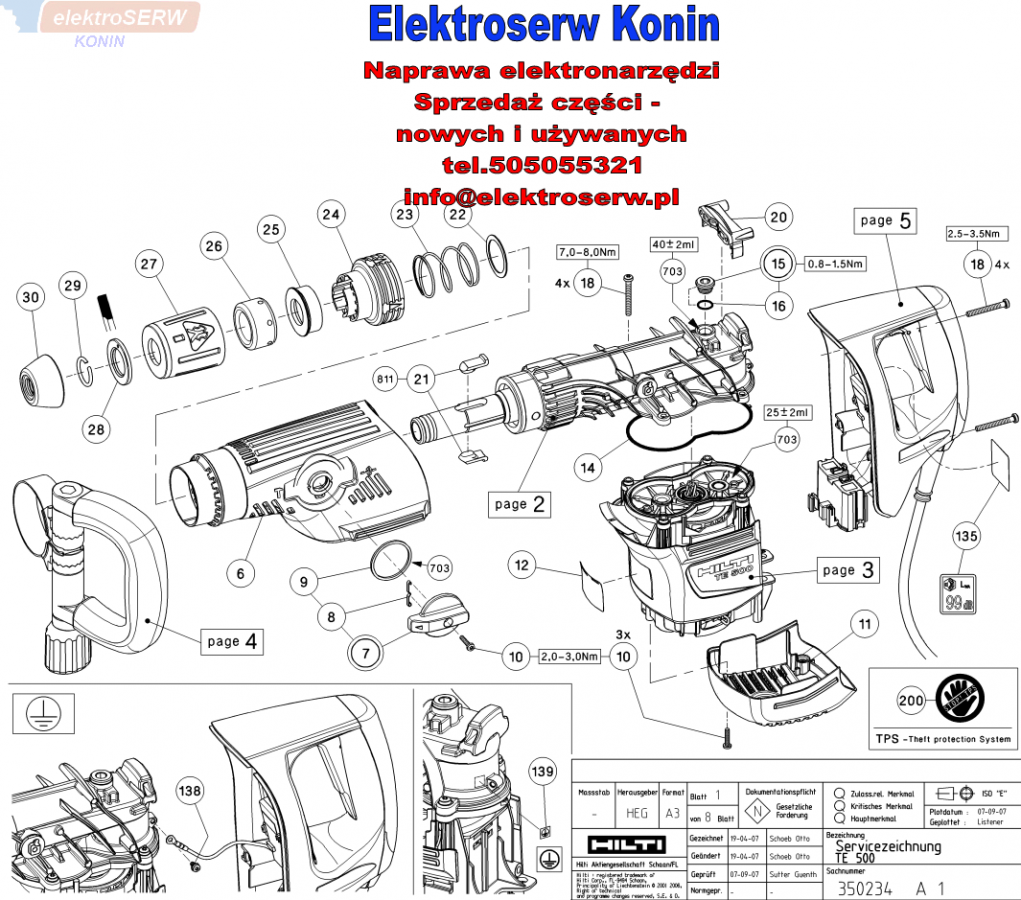

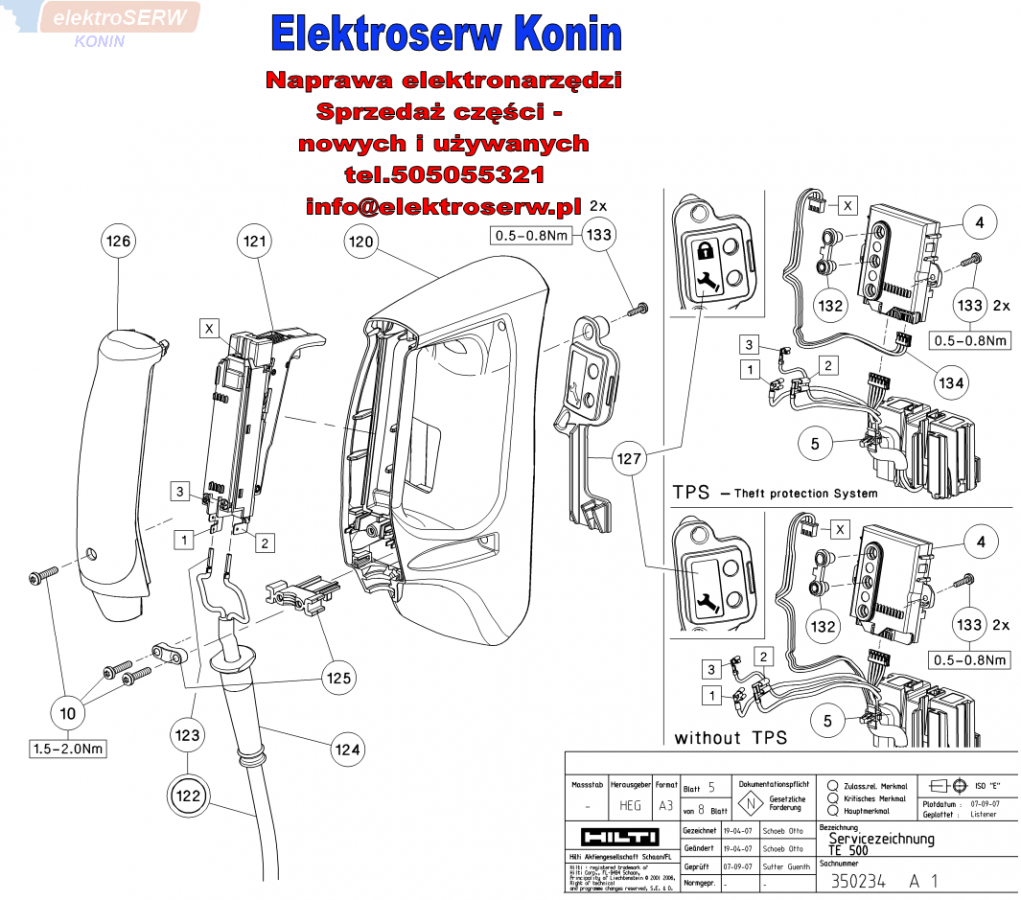

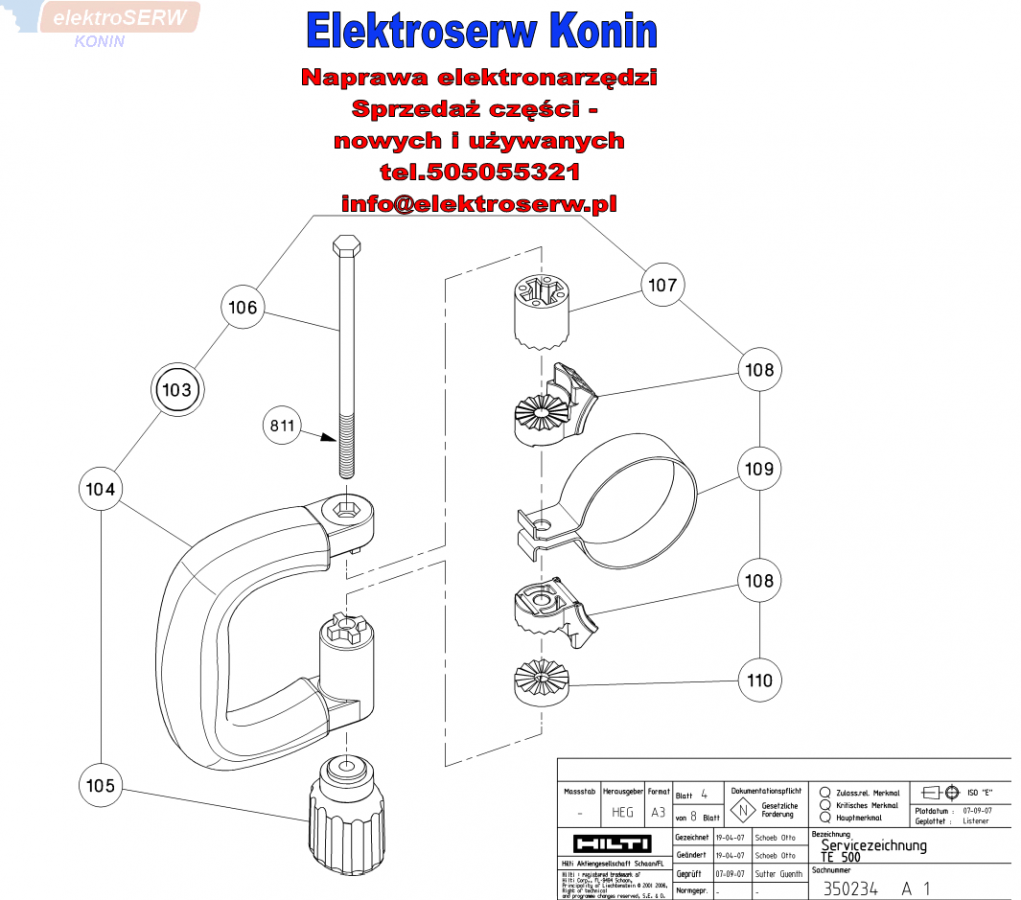

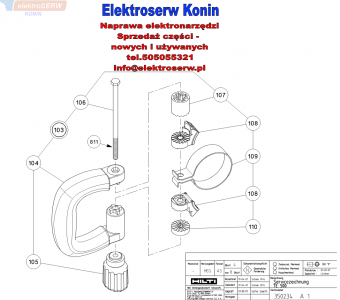

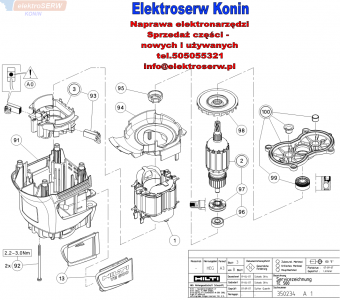

Spis części zamiennych:

TE 56ATC TE 500

Pozycja na schemacie	Nr katalogowy	Nazwa części	Pozycja na schemacie	Nr katalogowy	Nazwa Części
4	366395	Stator 110V/120V SERVICE	1	241368	Stator 110V - 120V packed
5	366398	Rotor 110V/120V SERVICE	2	241371	Rotor 110V - 120V packed
6	366152	Brush holder 100V/120V assy	3	275079	Brush holder UNI 42 7x12,5 assy
7		Electronics TE 46/56 ATC/TPS2 packed	6	389908	Casing printed
8	330179	Protective sleeve DM10	7	389968	Setting lever assy
9	233636	Supply cord USA/CDN	8	366289	Spring
10	366277	Setting lever assy	9	366163	Seal FILZ
11	330166	Cap	10	207960	Torx-soc re scr 4X18 T15 black
12	366189	Housing end cap ATC	11	208557	Motor housing end cap
13	366280	Torx-soc re scr 5X55 T25 black	12	390315	Rating plate TE 500 TPS 120V USA
14	76438	Plastite screw 45 5X35 T25 black	13	389904	Insert TE 500 printed
15	268094	Torx-soc re scr 4X14 T20 black	14	208523	Seal
17	366487	Casing ATC printed	15	71886	Screw plug Service assy
18	366279	Seal	16	73455	O-ring 11,5X1,5
19	72320	Depth gauge	18	347648	Torx-soc re scr 5X40/22T25 black
20	330083	Side handle assy	20	208843	Bow
21	330084	Side handle upper	21	345238	Pawl MIM
22	330086	Side handle lower	22	390979	Washer 33x42x1
23	330088	Pressure piece	23	330080	Compression spring 2X40X49,3
24	330089	Clamping band	24	366264	Cap
25	330090	Hexagon screw M10X100	25	330048	Ring
26	330492	Segment	26	366138	Absorber
27	366489	Holder kpl	27	330050	Cover cap
29	206145	O-ring 21,3X2,4	28	330051	Washer
30	366141	Motor housing TE 56	29	330170	Retaining ring
31	234227	Compression spring 21,65x5,4	30	330166	Cap
32	366164	Bearing plate ATC assy	31	208612	Gear housing finpt
33	366158	Ball bearing 8X22X7	32	208595	Stop
34	366187	Cooling fan	34	366228	Conrod
35	277993	Int hexalob remf scr 4X55	35	366225	Drive piston
36	366173	Pinion ATC mach	36	202193	Dowel pin 7X23
37	366124	Carbon brush 7x12,5x26 100V-120V AO	37	366293	O-ring 20,22X3,53
38	366179	Washer assy	38	208958	Guide tube
39	366168	Ball bearing 12X32X10	39	38827	Striker piston TE 500 packed
40	366494	Rotary shaft seal 14,8x35x4	40	391675	O-ring 20,22x3,53
41	366193	Ball bearing 7X19X6	41	208614	Coupling
42	366178	Electromagnet	42	202115	Compression spring
43	366973	Rating plate TE 56-ATC/TPS2 120V USA	43	366355	Centering ring
44	72417	Conductor end	44	366239	O-ring 20X9,5
45	366580	Grip unit	45	366236	Washer 37,6X18,5X5
46	330177	Clamp	46	233656	Sealing ring 18,4X25,4X5,4
47	202188	Torx-soc ov screw M5X12 T25 black	47	38828	Ram TE 500 packed
48	366191	Clamping ring	48	366161	O-ring
49	237764	Torx-soc re scr 5X45 T25 black	49	366162	Sealing ring
50	366185	Insulating washer	57	208956	Chuck Y
51	366305	Switch	58	345232	Absorber
52	366306	Receptacle assy	59	208608	Stop Alu
53	202264	Torx-soc pl scr 45 3X12 T10 black	60	329092	Washer 40x51,5x0,8
54	207960	Torx-soc re scr 4X18 T15 black	61	391069	Circlip JS 52x2,5
55	366312	Switch POTI	62	348133	O-ring 44x4
56	330018	Grip cover	63	208596	Cap assy
57	366316	Electric plug BAUSATZ assy	69	330091	O-ring 12X2
58	277212	Terminal block 500/3 35 DS	70	208604	Eccentric
59	366579	Cover TPS2	71	208616	Eccentric
60	366303	Feeler	72	366260	Ball bearing 20X42X12
61	366285	Setting rod	73	366578	O-ring 37,5x1,25
62	366286	Lever	74	76581	Retaining ring SW20
63	366272	Disc spring 20X10,2X0,5	75	208605	Toothed gear Z=47
64	366227	Ball bearing 20X37X9	76	366272	Disc spring 20X10,2X0,5
65	206305	O-ring 8X1	77	206304	Washer
66	366211	Safety clutch assy	78	206303	Thrust needle roller cage
67	366269	Needle bearing AXK1024	79	206305	O-ring 8X1
68	366225	Drive piston	91	208550	Motor housing
69	366228	Conrod	92	201239	Int hexalob remf scr 4X75 T15
70	202193	Dowel pin 7X23	93	330956	Carbon brush 7x12,5x26 100V-120V AO
71	366293	O-ring 20,22X3,53	94	275083	Air deflector
72	366268	Washer 10X24X1	95	208875	Insert rubber
73	366477	Eccentric	96	206210	Ball bearing 608-2Z
74	366528	Feather key A4X4X12	97	341146	Insulating washer
75	366260	Ball bearing 20X42X12	98	275084	Cooling fan
76	76581	Retaining ring SW20	99	346291	Ball bearing 10X26X12,4
77	366273	Compression spring 1,0X20,5X8,8	100	208567	Bearing plate assy
78	366478	Coupling	103	389724	Chiselling handle assy
79	366479	Toothed gear Z=41	104	234296	Chiselling handle
80	366136	Shim ring 10X19X1	105	233549	Twist grip assy
81	330325	O-ring 5X1	106	233548	Hexagon bolt M8X160 black
84	366242	Chuck Y	107	233627	Snap-lock ring 2
85	330170	Retaining ring	108	389726	Holder
86	330051	Washer	109	389725	Clamping band
87	330050	Cover cap	110	233547	Snap-lock ring 1
88	366138	Absorber	120	208584	Grip moulding
89	330048	Ring	121	209033	Switch PF Arretierung assy
90	330046	Pawl	122	201155	Supply cord USA/CDN
91	366264	Cap	123	72417	Conductor end sleeve
92	330080	Compression spring 2X40X49,3	124	71753	Protective sleeve
93	366255	Spring guide	125	347404	Clamp Kombi
95	366256	Rotary shaft seal 32X42X7	126	208974	Grip cover kpl
96	366282	Circlip AV32	127	389909	Cover TPS printed
98	366529	Flange SERVICE assy	132	208972	Lightguide
99	366266	Grip section	133	366522	Torx-soc pl scr 45 3x12 T10 black
104	366249	Cage	134	208992	Cable harness MMI
105	366250	Absorber 45X32X5	138	201495	Torx-soc tapt scr M3,5X5,5 T15
106	366358	Ram Y	139	277216	Adhesive label SCHUTZERDUNG
107	366295	Washer 48X32,1X1,5	200	202804	Sticker D 50
109	233656	Sealing ring 18,4X25,4X5,4	200	202806	Sticker D 15
110	366236	Washer 37,6X18,5X5	200	202805	Sticker D 30
111	366239	O-ring 20X9,5	703	30215	Oil Turmopol 20HD 1L
115	366290	O-ring 56X2	800	26195	Grease 1KG ALN1001/00
117	366245	Striker piston	811	203086	Grease 50 ML
119	366237	Washer 60X45X2,5
120	366229	Compression spring 2,5x48,5x44
121	366234	Coupling ring
122	366230	Compression spring
123	366238	Coupling
125	366233	Bevel gear Z=27
126	366232	Bearing bushing
128	366356	Guide tube
129	366259	Ring
131	366275	Eccentric
132	330091	O-ring 12X2
133	234229	Screw plug
134	74157	O-ring 24X2
136	366231	Needle bearing NK6/10
137	366527	Gear housing Service assy
138	366276	Eccentric
139	366319	O-ring 14,6X2,4
140	233637	Torx-soc ov screw M6X25 T30 black
141	366355	Centering ring
142	366170	Bearing bushing
143	366171	Bearing bushing
144	366289	Spring
145	366209	Centering bushing 9/6,4X11,8
146	233624	Flexible conductor assy
147	277216	Adhesive label SCHUTZERDUNG
148	201495	Torx-soc tapt scr M3,5X5,5 T15
149	277896	O-ring 5X1,5
150	366483	Pressure piece assy
151	366485	Nut
152	366486	Star knob
153	366163	Seal FILZ
154	366488	Brush cap
155	366176	Drive ring
157	366161	O-ring
158	366162	Sealing ring
159	366038	O-ring 33,5x1
160	366578	O-ring 37,5x1,25
161	366226	Bevel pinion assy
200	202804	Sticker D 50
200	202806	Sticker D 15
200	202805	Sticker D 30
703	30215	Oil Turmopol 20HD 1L
800	26195	Grease 1KG ALN1001/00
802	87726	Grease 400G OPTI LT2
811	203086	Grease 50 ML
