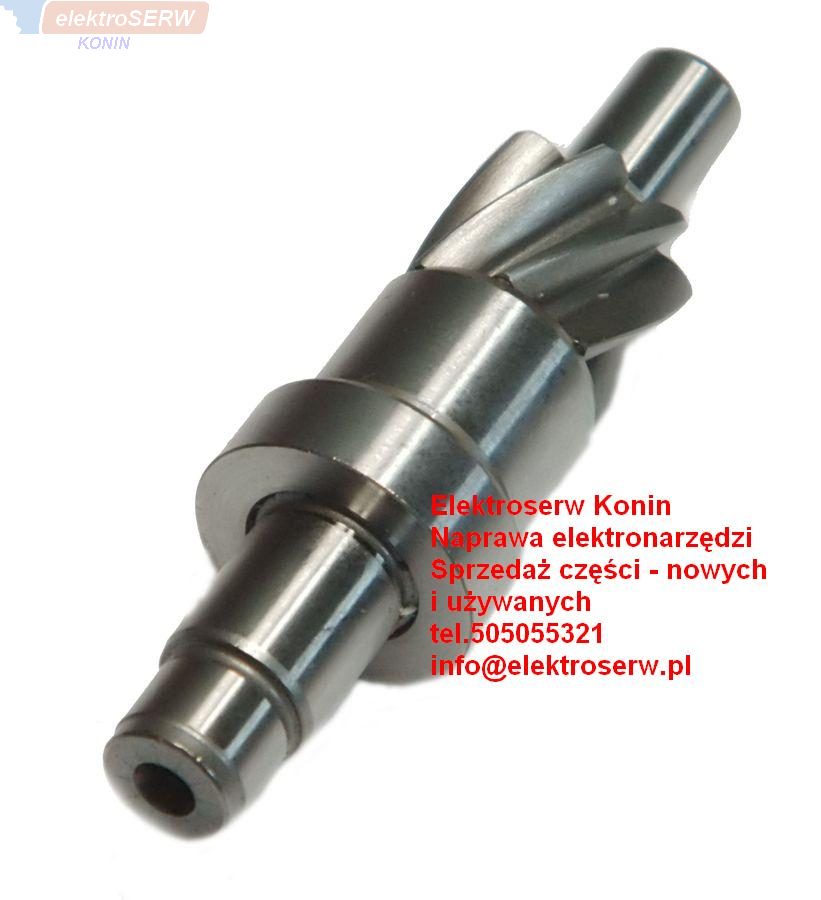

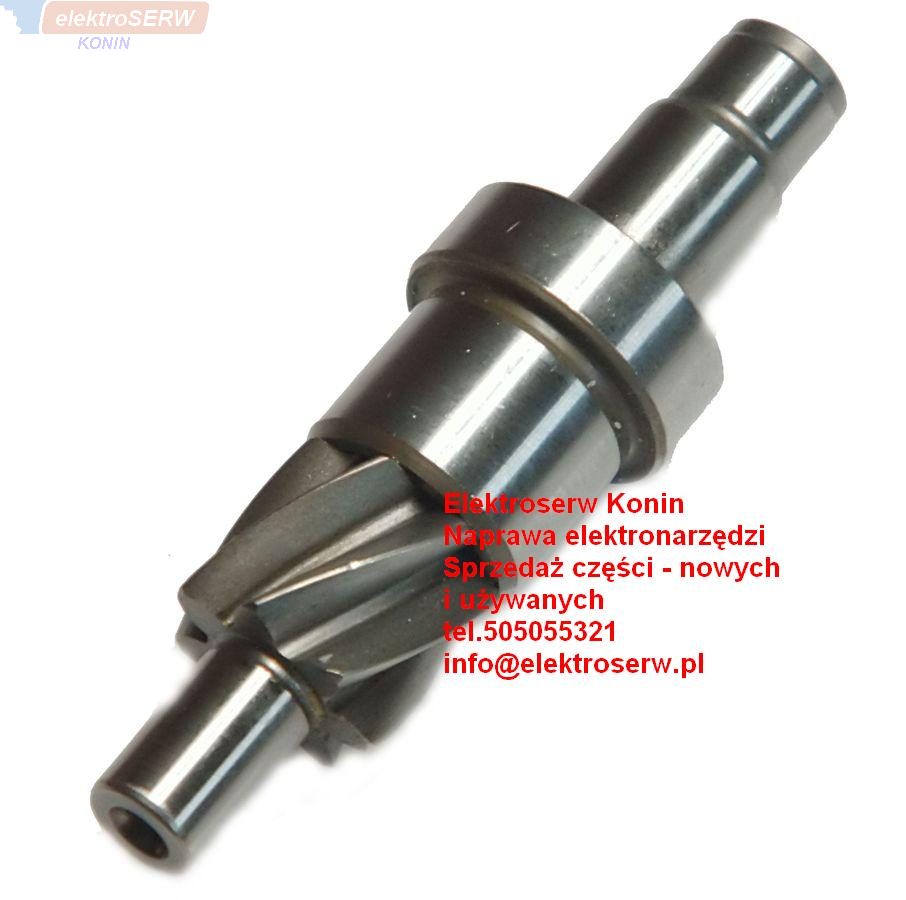

Hilti zębnik 366173 do młota TE56ATC
Hilti- zębnik.
Nr katalogowy: 366173
Zastosowanie: TE56ATC

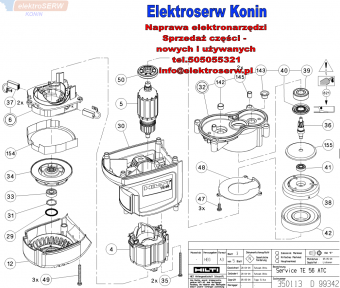

Pozycja na schemacie nr 36.
Posiadmy części do elektronarzędzi Hilti -prosimy pytać.
Prowadzimy serwis elektronarzędzi.

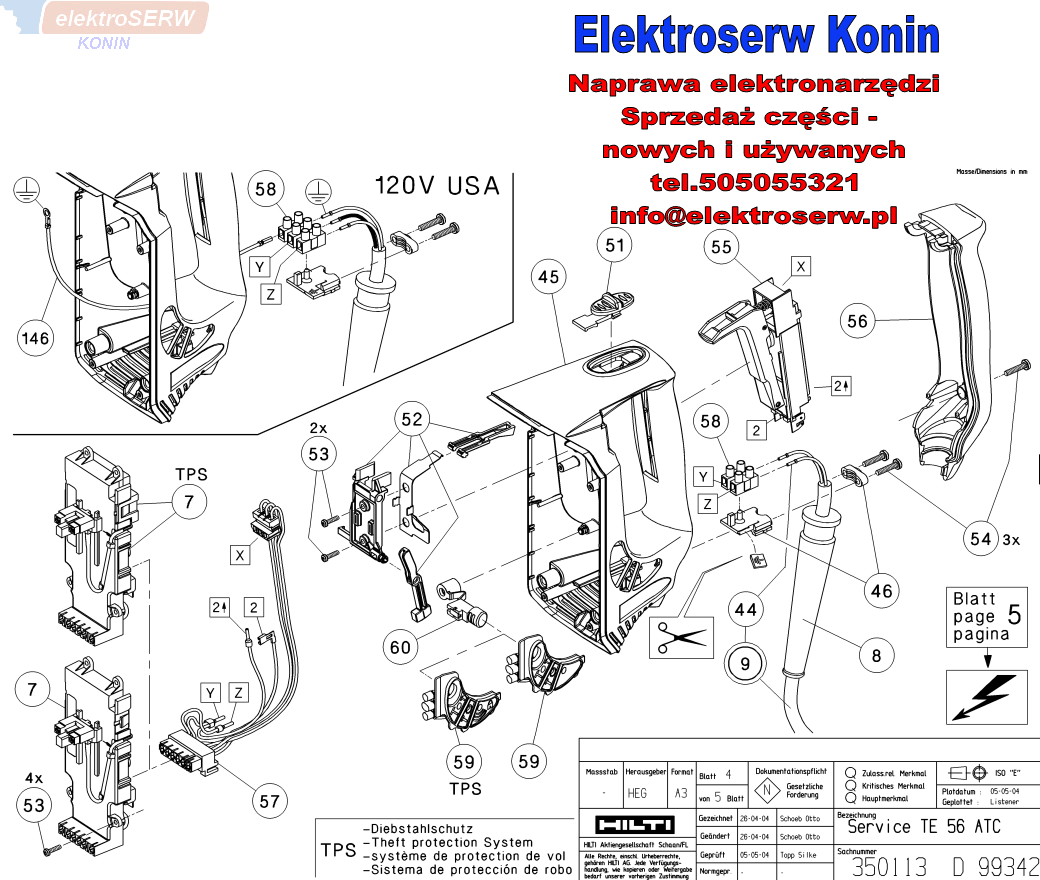

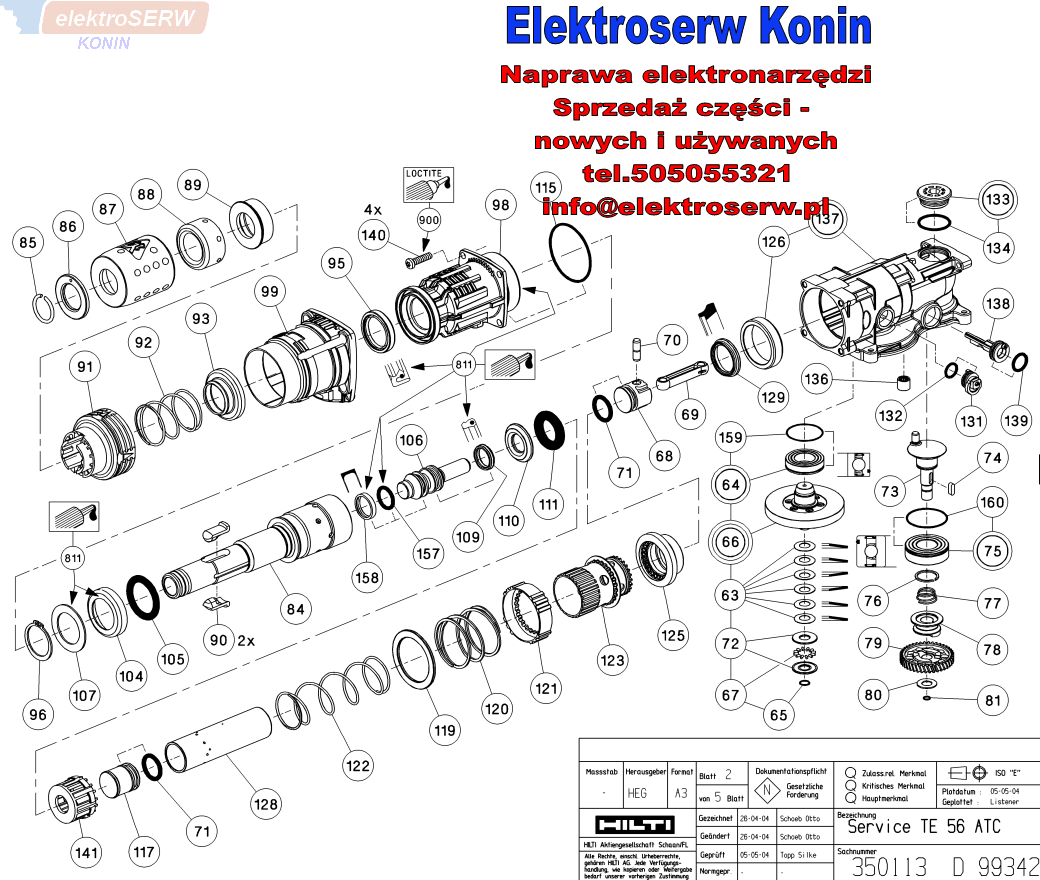

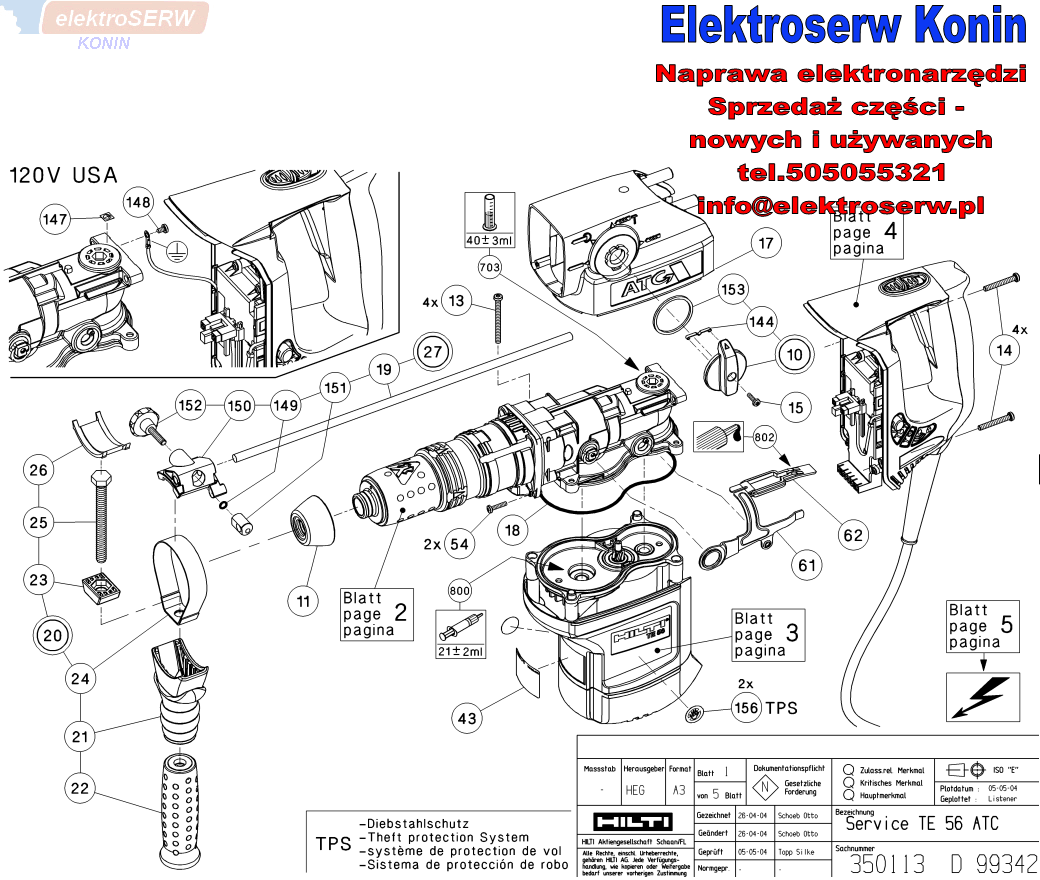

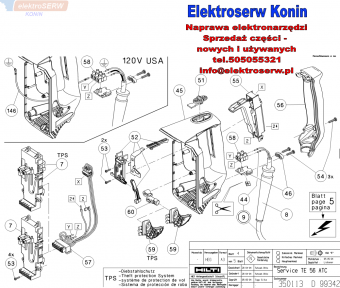

Spis części zamiennych:
| Pozycja na schemacie | Nr katalogowy | Opis części |
| 4 | 366395 | Stator 110V/120V SERVICE |
| 5 | 366398 | Rotor 110V/120V SERVICE |
| 6 | 366152 | Brush holder 100V/120V assy |
| 7 | Electronics TE 46/56 ATC/TPS2 packed | |
| 8 | 330179 | Protective sleeve DM10 |
| 9 | 233636 | Supply cord USA/CDN |
| 10 | 366277 | Setting lever assy |
| 11 | 330166 | Cap |
| 12 | 366189 | Housing end cap ATC |
| 13 | 366280 | Torx-soc re scr 5X55 T25 black |
| 14 | 76438 | Plastite screw 45 5X35 T25 black |
| 15 | 268094 | Torx-soc re scr 4X14 T20 black |
| 17 | 366487 | Casing ATC printed |
| 18 | 366279 | Seal |
| 19 | 72320 | Depth gauge |
| 20 | 330083 | Side handle assy |
| 21 | 330084 | Side handle upper |
| 22 | 330086 | Side handle lower |
| 23 | 330088 | Pressure piece |
| 24 | 330089 | Clamping band |
| 25 | 330090 | Hexagon screw M10X100 |
| 26 | 330492 | Segment |
| 27 | 366489 | Holder kpl |
| 29 | 206145 | O-ring 21,3X2,4 |
| 30 | 366141 | Motor housing TE 56 |
| 31 | 234227 | Compression spring 21,65x5,4 |
| 32 | 366164 | Bearing plate ATC assy |
| 33 | 366158 | Ball bearing 8X22X7 |
| 34 | 366187 | Cooling fan |
| 35 | 277993 | Int hexalob remf scr 4X55 |
| 36 | 366173 | Pinion ATC mach |
| 37 | 366124 | Carbon brush 7x12,5x26 100V-120V AO |
| 38 | 366179 | Washer assy |
| 39 | 366168 | Ball bearing 12X32X10 |
| 40 | 366494 | Rotary shaft seal 14,8x35x4 |
| 41 | 366193 | Ball bearing 7X19X6 |
| 42 | 366178 | Electromagnet |
| 43 | 366973 | Rating plate TE 56-ATC/TPS2 120V USA |
| 44 | 72417 | Conductor end |
| 45 | 366580 | Grip unit |
| 46 | 330177 | Clamp |
| 47 | 202188 | Torx-soc ov screw M5X12 T25 black |
| 48 | 366191 | Clamping ring |
| 49 | 237764 | Torx-soc re scr 5X45 T25 black |
| 50 | 366185 | Insulating washer |
| 51 | 366305 | Switch |
| 52 | 366306 | Receptacle assy |
| 53 | 202264 | Torx-soc pl scr 45 3X12 T10 black |
| 54 | 207960 | Torx-soc re scr 4X18 T15 black |
| 55 | 366312 | Switch POTI |
| 56 | 330018 | Grip cover |
| 57 | 366316 | Electric plug BAUSATZ assy |
| 58 | 277212 | Terminal block 500/3 35 DS |
| 59 | 366579 | Cover TPS2 |
| 60 | 366303 | Feeler |
| 61 | 366285 | Setting rod |
| 62 | 366286 | Lever |
| 63 | 366272 | Disc spring 20X10,2X0,5 |
| 64 | 366227 | Ball bearing 20X37X9 |
| 65 | 206305 | O-ring 8X1 |
| 66 | 366211 | Safety clutch assy |
| 67 | 366269 | Needle bearing AXK1024 |
| 68 | 366225 | Drive piston |
| 69 | 366228 | Conrod |
| 70 | 202193 | Dowel pin 7X23 |
| 71 | 366293 | O-ring 20,22X3,53 |
| 72 | 366268 | Washer 10X24X1 |
| 73 | 366477 | Eccentric |
| 74 | 366528 | Feather key A4X4X12 |
| 75 | 366260 | Ball bearing 20X42X12 |
| 76 | 76581 | Retaining ring SW20 |
| 77 | 366273 | Compression spring 1,0X20,5X8,8 |
| 78 | 366478 | Coupling |
| 79 | 366479 | Toothed gear Z=41 |
| 80 | 366136 | Shim ring 10X19X1 |
| 81 | 330325 | O-ring 5X1 |
| 84 | 366242 | Chuck Y |
| 85 | 330170 | Retaining ring |
| 86 | 330051 | Washer |
| 87 | 330050 | Cover cap |
| 88 | 366138 | Absorber |
| 89 | 330048 | Ring |
| 90 | 330046 | Pawl |
| 91 | 366264 | Cap |
| 92 | 330080 | Compression spring 2X40X49,3 |
| 93 | 366255 | Spring guide |
| 95 | 366256 | Rotary shaft seal 32X42X7 |
| 96 | 366282 | Circlip AV32 |
| 98 | 366529 | Flange SERVICE assy |
| 99 | 366266 | Grip section |
| 104 | 366249 | Cage |
| 105 | 366250 | Absorber 45X32X5 |
| 106 | 366358 | Ram Y |
| 107 | 366295 | Washer 48X32,1X1,5 |
| 109 | 233656 | Sealing ring 18,4X25,4X5,4 |
| 110 | 366236 | Washer 37,6X18,5X5 |
| 111 | 366239 | O-ring 20X9,5 |
| 115 | 366290 | O-ring 56X2 |
| 117 | 366245 | Striker piston |
| 119 | 366237 | Washer 60X45X2,5 |
| 120 | 366229 | Compression spring 2,5x48,5x44 |
| 121 | 366234 | Coupling ring |
| 122 | 366230 | Compression spring |
| 123 | 366238 | Coupling |
| 125 | 366233 | Bevel gear Z=27 |
| 126 | 366232 | Bearing bushing |
| 128 | 366356 | Guide tube |
| 129 | 366259 | Ring |
| 131 | 366275 | Eccentric |
| 132 | 330091 | O-ring 12X2 |
| 133 | 234229 | Screw plug |
| 134 | 74157 | O-ring 24X2 |
| 136 | 366231 | Needle bearing NK6/10 |
| 137 | 366527 | Gear housing Service assy |
| 138 | 366276 | Eccentric |
| 139 | 366319 | O-ring 14,6X2,4 |
| 140 | 233637 | Torx-soc ov screw M6X25 T30 black |
| 141 | 366355 | Centering ring |
| 142 | 366170 | Bearing bushing |
| 143 | 366171 | Bearing bushing |
| 144 | 366289 | Spring |
| 145 | 366209 | Centering bushing 9/6,4X11,8 |
| 146 | 233624 | Flexible conductor assy |
| 147 | 277216 | Adhesive label SCHUTZERDUNG |
| 148 | 201495 | Torx-soc tapt scr M3,5X5,5 T15 |
| 149 | 277896 | O-ring 5X1,5 |
| 150 | 366483 | Pressure piece assy |
| 151 | 366485 | Nut |
| 152 | 366486 | Star knob |
| 153 | 366163 | Seal FILZ |
| 154 | 366488 | Brush cap |
| 155 | 366176 | Drive ring |
| 157 | 366161 | O-ring |
| 158 | 366162 | Sealing ring |
| 159 | 366038 | O-ring 33,5x1 |
| 160 | 366578 | O-ring 37,5x1,25 |
| 161 | 366226 | Bevel pinion assy |
| 200 | 202804 | Sticker D 50 |
| 200 | 202806 | Sticker D 15 |
| 200 | 202805 | Sticker D 30 |
| 703 | 30215 | Oil Turmopol 20HD 1L |
| 800 | 26195 | Grease 1KG ALN1001/00 |
| 802 | 87726 | Grease 400G OPTI LT2 |
| 811 | 203086 | Grease 50 ML |
