Hilti części zamienne do młotowiertarki TE 80-ATC AVR TPS2 392911
Spis części zamiennych do młotowiertarki
TE 80-ATC AVR TPS2 392911

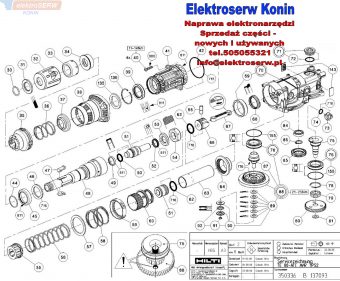

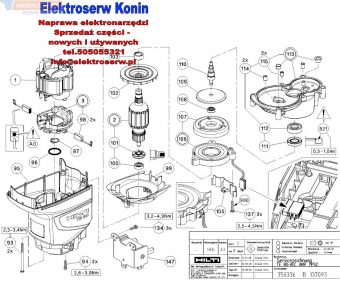

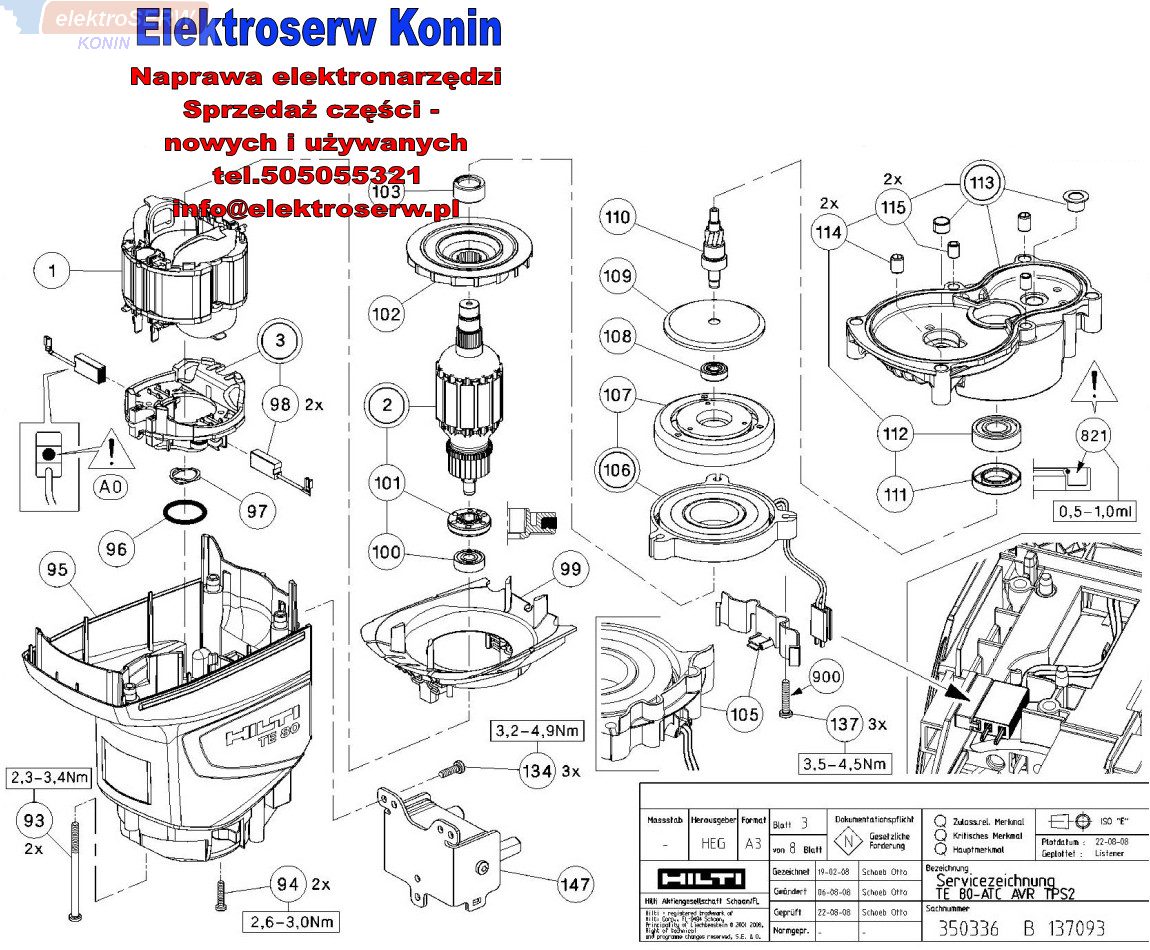

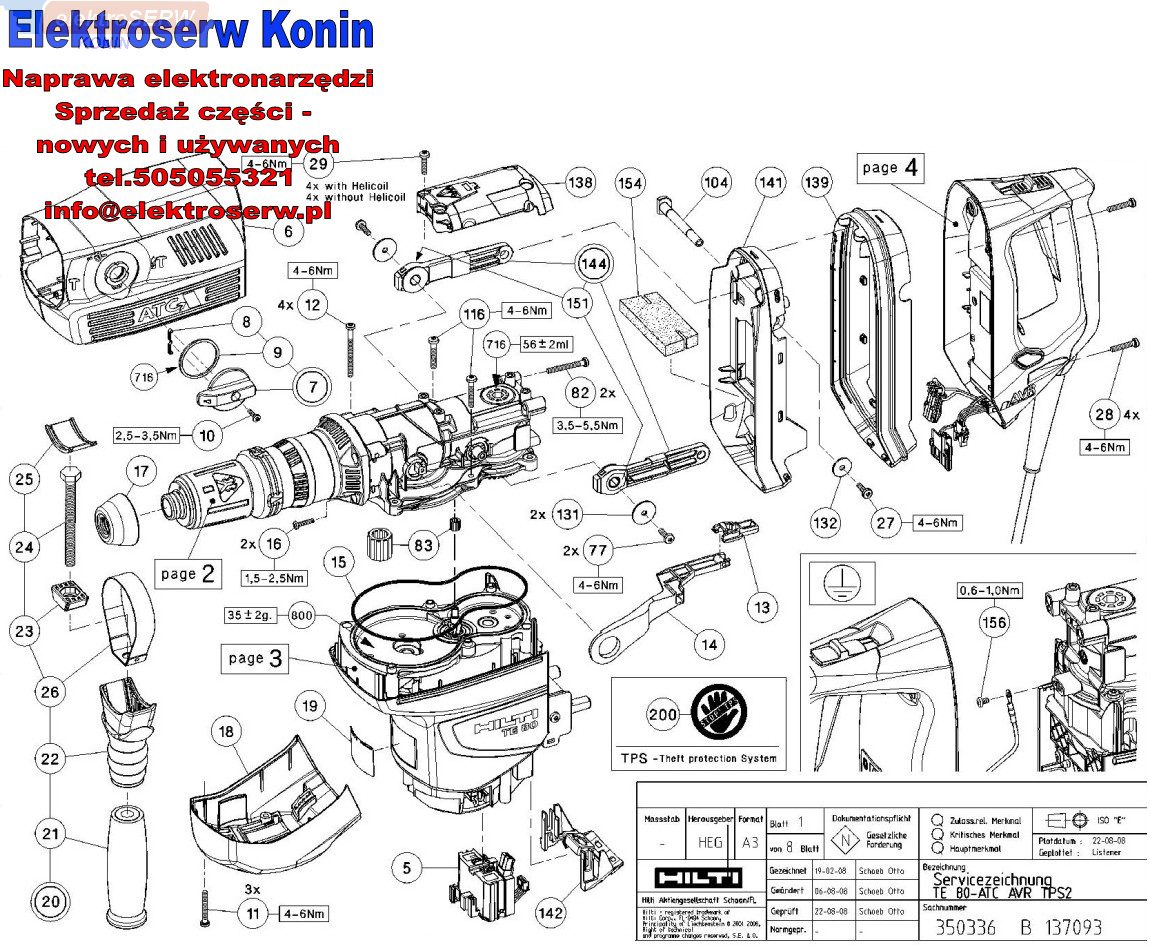

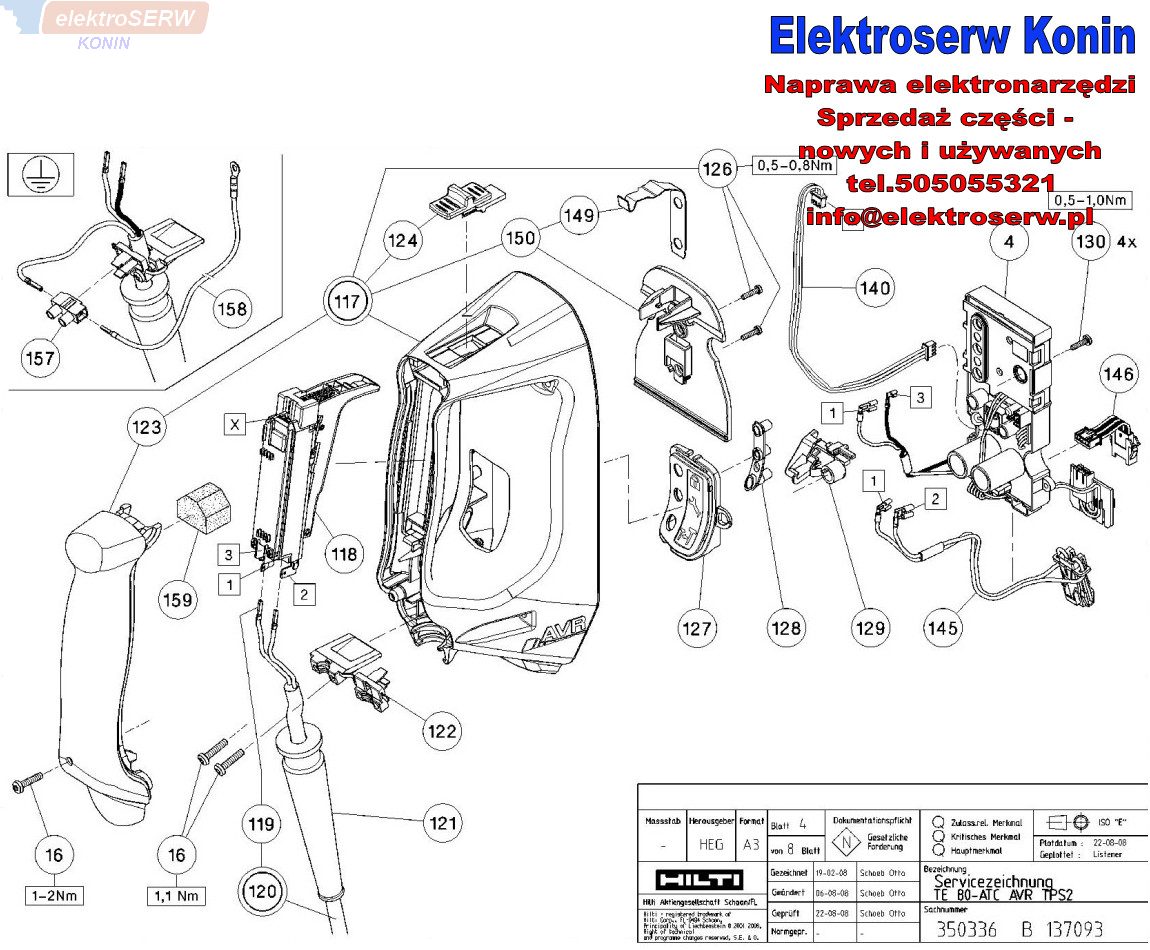

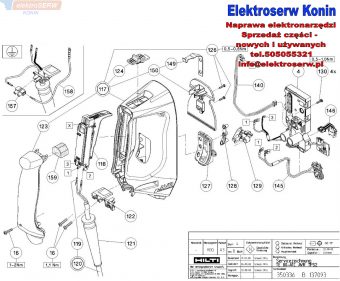

Przy zapytaniu o dostępność i cenę prosimy podać pozycję
na schemacie lub nr katalogowy części.
| Pozycja na schemacie | Nr katalogowy | Nazwa Części |
| 1 | 74475 | Stator Uni 48 110V-127V H35 packed |
| 2 | 74478 | Rotor TE 70-ATC 110V-127V packed |
| 3 | 364417 | Brush holder UNI 48 7x12,5 100-240V assy |
| 4 | 74482 | Electronics MMI ATC TPS packed |
| 5 | 234463 | Electronics LT 100-120V packed |
| 6 | 366835 | Casing ATC printed |
| 7 | 366870 | Setting lever assy |
| 8 | 366289 | Spring |
| 9 | 366163 | Seal FILZ |
| 10 | 268094 | Torx-soc re scr 4X14 T20 black |
| 11 | 366292 | Torx-soc re scr 5X35 T25 black |
| 12 | 366280 | Torx-soc re scr 5X55 T25 black |
| 13 | 366848 | Pin stop |
| 14 | 366849 | Setting rod |
| 15 | 366879 | Seal |
| 16 | 207960 | Torx-soc re scr 4X18 T15 black |
| 17 | 330166 | Cap |
| 18 | 366836 | Housing end cap |
| 19 | 392902 | Rating plate TE 80-ATC 120V USA |
| 20 | 330083 | Side handle assy |
| 21 | 330086 | Side handle lower |
| 22 | 330084 | Side handle upper |
| 23 | 330088 | Pressure piece |
| 24 | 330090 | Hexagon screw M10X100 black |
| 25 | 330492 | Segment |
| 26 | 330089 | Clamping band |
| 27 | 206291 | Torx-soc ov screw M5X16 MK T25 black |
| 28 | 237762 | Torx-soc re scr 5X25 T25 black |
| 29 | 26372 | Taptite screw M5X20 T25 black |
| 29 | 355079 | Hex skt binding hd scr M5X20 T20 black |
| 30 | 330170 | Retaining ring |
| 31 | 330051 | Washer |
| 32 | 330050 | Cover cap |
| 33 | 330114 | Absorber |
| 34 | 330048 | Ring |
| 35 | 330047 | Cap |
| 36 | 330080 | Compression spring 2X40X49,3 |
| 37 | 330100 | Spring guide |
| 38 | 391239 | Grip section |
| 39 | 202094 | Rotary shaft seal 34X47X9 |
| 40 | 233534 | Torx-soc ov screw M6X25 MK T30 black |
| 41 | 237947 | Flange SERVICE assy |
| 42 | 26247 | O-ring 58X2 |
| 44 | 330120 | Retaining ring |
| 45 | 345233 | Cage |
| 46 | 345232 | Absorber |
| 47 | 330046 | Pawl |
| 48 | 366842 | Chuck |
| 49 | 366095 | Seal |
| 50 | 206121 | O-ring 18,64X3,53-N-FPM70 |
| 51 | 74873 | Ram TE 70 / TE 70-ATC packed |
| 52 | 330116 | Sealing ring 20,55X28X4,8 |
| 53 | 366631 | Washer |
| 54 | 345209 | Absorber |
| 55 | 366876 | Centering ring |
| 56 | 366830 | Compression spring |
| 57 | 366837 | Washer |
| 58 | 366829 | Compression spring |
| 59 | 366834 | Coupling ring |
| 60 | 366838 | Coupling |
| 61 | 74874 | Striker piston TE 70 / TE 70-ATC packed |
| 62 | 17955 | O-ring 24,99X3,53 |
| 63 | 366856 | Guide tube |
| 64 | 366096 | Bevel gear |
| 65 | 26010 | Piston pin |
| 66 | 345151 | Drive piston |
| 67 | 26009 | Conrod |
| 68 | 366627 | Ring |
| 69 | 206090 | Bearing bushing |
| 70 | 393885 | Gear housing SERVICE TE 80-ATC assy |
| 71 | 234236 | Screw plug assy |
| 72 | 74157 | O-ring 24X2 |
| 73 | 330984 | Eccentric |
| 74 | 330091 | O-ring 12X2 |
| 75 | 366863 | Eccentric |
| 76 | 330472 | Ball bearing 30X47X9 |
| 77 | 327277 | Torx-soc tapt scr 5x16 T25 black |
| 78 | 76486 | Retaining ring SW30 |
| 79 | 202086 | Toothed gear Z23 |
| 80 | 366632 | Toothed gear z=46 |
| 81 | 366136 | Shim ring 10X19X1 |
| 82 | 347648 | Torx-soc re scr 5X40/22T25 black |
| 83 | 202091 | Needle roller cage K6X9X10-TV |
| 84 | 366637 | Ball bearing 20x32x7 |
| 85 | 202087 | Toothed gear Z39 |
| 86 | 59665 | Circlip 20X1,2 |
| 87 | 366662 | Bevel pinion assy |
| 88 | 366677 | Safety clutch assy |
| 89 | 366272 | Disc spring 20X10,2X0,5 |
| 90 | 366268 | Washer 10X24X1 |
| 91 | 206305 | O-ring 8X1 |
| 92 | 366269 | Needle bearing AXK1024 |
| 93 | 275057 | Int hexalob remf scr 5 x 75 T25 |
| 94 | 367224 | Torx-soc re scr 4X20 T15 black |
| 95 | 366725 | Motor housing TE 80 assy |
| 96 | 206145 | O-ring 21,3X2,4 |
| 97 | 234227 | Compression spring 21,65x5,4 |
| 98 | 366124 | Carbon brush 7x12,5x26 100V-120V AO |
| 99 | 330988 | Air deflector |
| 100 | 366158 | Ball bearing 8X22X7 |
| 101 | 341146 | Insulating washer |
| 102 | 341217 | Cooling fan |
| 103 | 366651 | Sleeve ATC |
| 104 | 366924 | Clevis pin |
| 105 | 202581 | Cable trunking |
| 106 | 366640 | Coupler Magnet assy |
| 107 | 366642 | Washer kpl. |
| 108 | 366193 | Ball bearing 7X19X6 |
| 109 | 366776 | Drive ring |
| 110 | 366728 | Pinion ATC V06h mach |
| 111 | 366198 | Rotary shaft seal 18X35X7 |
| 112 | 234199 | Ball bearing 15X35X11 |
| 113 | 366764 | Bearing plate assy |
| 114 | 366209 | Centering bushing 9/6,4X11,8 |
| 115 | 202079 | Centering bushing |
| 116 | 202092 | Taptite screw M5x30 TX25 black |
| 117 | 366752 | Grip unit |
| 118 | 208991 | Switch PF Poti assy |
| 119 | 72417 | Conductor end sleeve |
| 120 | 330778 | Supply cord USA/CDN |
| 121 | 330179 | Protective sleeve DM10 |
| 122 | 280743 | Clamp Plattform |
| 123 | 330018 | Grip cover |
| 124 | 330978 | Switch |
| 125 | 330991 | Receptacle assy |
| 126 | 202264 | Torx-soc pl scr 45 3X12 T10 black |
| 127 | 203975 | Cover TE 70-ATC kpl packed |
| 128 | 208990 | Lightguide |
| 129 | 330985 | Feeler assy |
| 130 | 366522 | Torx-soc pl scr 45 3x12 T10 black |
| 131 | 366928 | Washer 5,3 / 25 x 1,5 |
| 132 | 366931 | Washer 5,3 / 20 x 1,5 |
| 134 | 326295 | Torx-soc re scr 5X20 T20 black |
| 135 | 202093 | Sealing ring |
| 136 | 202076 | Circlip SB 47 |
| 137 | 365327 | Torx-soc ov screw M5X25 T25 black |
| 138 | 366854 | Oscillating plate assy |
| 139 | 366934 | Bellows |
| 140 | 209355 | Cable harness MMI |
| 141 | 366919 | Holder |
| 142 | 366927 | Bow |
| 143 | 366950 | Slide Getriebegehaeuse |
| 144 | 365500 | Conrod kpl. packed |
| 145 | 237958 | Cable harness Poti-Buegel |
| 146 | 237957 | Cable harness MMI-Buegel |
| 147 | 366884 | Aufnahmerahmen kpl |
| 149 | 330987 | Leaf spring |
| 150 | 391016 | Receptacle |
| 151 | 366937 | Absorber |
| 152 | 366953 | Buffer Pleuel |
| 154 | 214077 | Cover plate |
| 155 | 330479 | O-ring 45X1 N-NBR70 |
| 156 | 201495 | Torx-soc tapt scr M3,5X5,5 T15 |
| 157 | 209301 | Terminal block 500/1 31 DS |
| 158 | 233624 | Flexible conductor assy |
| 159 | 355310 | Cover plate 2 |
| 160 | 277216 | Adhesive label SCHUTZERDUNG |
| 200 | 202806 | Sticker D 15 |
| 200 | 202804 | Sticker D 50 |
| 200 | 202805 | Sticker D 30 |
| 716 | 280101 | Oil Kluebersinth GH 6-80 5L |
| 800 | 26195 | Grease 1KG ALN1001/00 |
| 802 | 87726 | Grease 400G OPTI LT2 |
| 811 | 203086 | Grease 50 ML |
| 821 | 234280 | Grease 1KG THERMOPL. 2TML |
| 900 | 59299 | Adhesive LOCTITE 222 250CCM |
