Sparky części zamienne do młota udarowego BP750CE HD 1350W

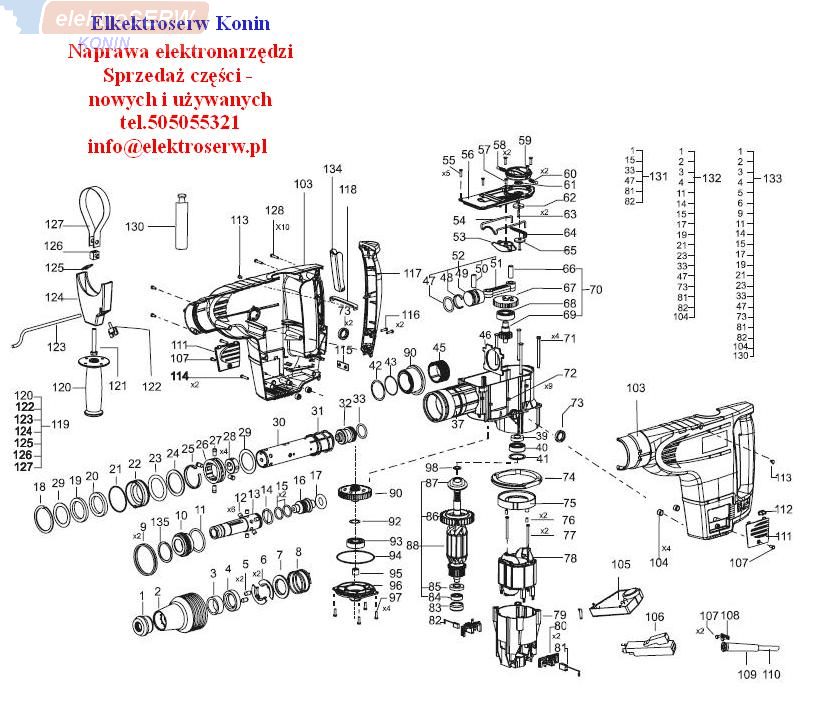

Spis części zamiennych do młota udarowego
SDS-MAX BP750CE HD 1350W
Przy zapytaniu o dostępność i cenę prosimy podać
pozycję na schemacie lub nr katalogowy części.
| Pozycja na schemacie | Nr katalogowy | Nazwa |
| 1 | 131С82 | Rubber bush |
| 2 | 131353 | SDS Cover |
| 2 | 172825 | SDS Cover |
| 3 | 131121 | Elastic ring |
| 4 | 131С87 | Carrier ring |
| 5 | 131С89 | Round cotter |
| 6 | 131С85 | Semiring |
| 7 | 131С88 | Backing ring |
| 8 | 131С84 | Spring |
| 9 | 33С379 | O-ring 66X2B |
| 10 | 131359 | Locking ring |
| 11 | 33С591 | O-ring 46X4 NBR7C |
| 12 | 33С6С6 | Roller 8X8 |
| 13 | 131С81 | SDS-Spindle |
| 14 | 33С35С | O-ring 26X2 NBR7C |
| 15 | 33С662 | O-ring 22X3 FPM7C |
| 16 | 131СС6 | Intermediate stricker |
| 17 | 33С663 | O-ring 18X8 FPM7C |
| 18 | 33С61С | Circlip A6C |
| 19 | 131С47 | Gasket |
| 20 | 33С6С9 | Gasket AS4Cx55x7 NBR |
| 21 | 33С593 | O-ring 56X2 NBR7C |
| 22 | 131116 | Front support |
| 23 | 33С6С1 | O-ring 45X7 NBR7C |
| 24 | 131С56 | Spacer washer |
| 25 | 131С16 | Circlip |
| 26 | 131С13 | Exterior ring |
| 27 | 131С17 | Pin |
| 28 | 131С15 | Interior ring |
| 29 | 131С55 | Spacer washer |
| 30 | 131113 | Spindle |
| 31 | 131С54 | Spring |
| 32 | 131СС4 | Stricker |
| 33 | 33С595 | O-ring 26.58X3.53 FPM8C |
| 37 | 131С48 | Body set |
| 39 | 33С6С8 | Gasket AS15x28x7 NBR |
| 40 | 33С695 | Bearing 62C2-2RS-P63-LDS18Sp.A |
| 41 | 33С472 | Circlip A35 |
| 41* | 33С732 | Circlip A35-1D |
| 42 | 131С57 | Padding washer |
| 43 | 131С58 | Padding washer |
| 45 | 131С53 | Tooth coupling |
| 46 | 131С52 | Rack |
| 47 | 33С597 | O-ring 28X3.5 FPM8C |
| 48*** | 131С11 | Circlip |
| 49*** | 131СС8 | Piston |
| 49**** | 131356 | Piston |
| 50*** | 131С1С | Axle |
| 50**** | 131С44 | Pin |
| 51 | 131СС9 | Pitman |
| 52*** | 131СС7 | Piston set |
| 52**** | 157342 | Piston set |
| 53 | 131С31 | Guide |
| 54 | 131С3С | Fork |
| 55 | 36С674 | Screw M4x18 |
| 56 | 131С32 | Cover |
| 57 | 36С646 | Screw 4x9.5 |
| 58 | 33СС74 | Pellet 5-2СС |
| 59 | 17С11С | Operation mode selector switch |
| 60 | 115862 | Spring |
| 61 | 33С337 | O-ring 13x1.5 |
| 62 | 131С36 | Spacer washer |
| 63 | 36С667 | Screw BZ2,9x16DIN7982 |
| 64 | 131С35 | Spring |
| 65 | 131С37 | Spacer washer |
| 66 | 131С44 | Pin |
| 67 | 131С43 | Large intermediate gear |
| 68 | 33С634 | Bearing 62C3 2RSR FA177/INA |
| 69 | 131С42 | Pinion |
| 70 | 131С41 | Gear shaft set |
| 71 | 36С415 | Screw AK 5x64x2C |
| 72 | 36C149 | Nut M4 |
| 73 | 131C97 | Rubber insert |
| 74 | 131C5C | Ring |
| 75 | 131C74 | Diffuser |
| 76 | 239974 | Claming pin |
| 77 | 36C665 | Screw 4x64 |
| 78 | 172442 | Stator set |
| 79 | 131C73 | Motor body |
| 8C | 116752 | Brush holder set |
| 81 | 131C76 | Brush |
| 82 | 131C75 | Brush |
| 83 | 131952 | Rubber bush |
| 84 | 33C291 | Bearing 6CCC2ZP63LDS18 |
| 85 | 131C64 | Protective washer |
| 86 | 13C96C | Fan |
| 87 | 131294 | Labyrinth gasket |
| 88 | 172441 | Armature set |
| 9C | 1313CC | Protective assembly |
| 92 | 131C28 | Compensating washer |
| 93 | 33C634 | Bearing 62C3 2RSR FA177/INA |
| 94 | 33C352 | O-ring 8CX2B |
| 95 | 33C6C2 | Bearing HK1C12 |
| 96 | 131C23 | Bearing cover |
| 97 | 36C698 | Screw M4X2C |
| 98 | 112915 | Spacer washer |
| 1C3 | 131316 | Casing set |
| 1C4 | 116757 | Rubber bush |
| 1C5 | 17C5C8 | Electronic block |
| 1C6 | 131C79 | Switch |
| 1C7 | 36C646 | Screw 4x9.5 |
| 1C8 | 2565CC | Cord clamp |
| 1C9 | 12C724 | Cord protector |
| 11C | 153314 | Cord with a plug |
| 11C | 158913 | Cord with a plug RAL 3C2C |
| 111 | 131C94 | Couple brush cover set |
| 112 | 131C98 | Light conductor |
| 113 | 36C78C | Screw F2-M4x8 |
| 114 | 36C387 | Screw AK 5x45 |
| 115 | 1311C6 | Plate |
| 116 | 36C781 | Screw F2-M4x14 |
| 117 | 1311C3 | Insert |
| 118 | 131C99 | Clamp |
| 119 | 1311C7 | Front handle set |
| 119 | 178551 | Front handle set |
| 12C | 131291 | Handle |
| 121 | 36C195 | Bolt D1-M8X4C |
| 122 | 111C28 | Butterfly bolt |
| 123 | 131224 | Depth gauge |
| 124 | 1311C8 | Console |
| 125 | 1311C9 | Plate for limiter |
| 126 | 13111C | Stretching plate |
| 127 | 131111 | Base clamp |
| 128 | 36C654 | Screw 4x18 |
| 13C | 131287 | Tube of oil |
| 131 | 169847 | First service pack |
| 132 | 172483 | Second service pack |
| 132 | 1729C8 | Second service pack |
| 133 | 172484 | Third service pack |
| 133 | 1729C9 | Third service pack |
| 134 | 17C1C8 | Trigger |
| 135* | 33C739 | Circlip B3C-2B |
| 135** | 33126C | Circlip B3C |
| 2C1 | 141C67 | Operating instruction |
| 2C2 | 172494 | Tool case |
| 2C4*** | 179864 | Grease Liver T-C - 1,CC kg. |
| 2C4**** | 178672 | Grease G34-13C - 1,CC kg. |
