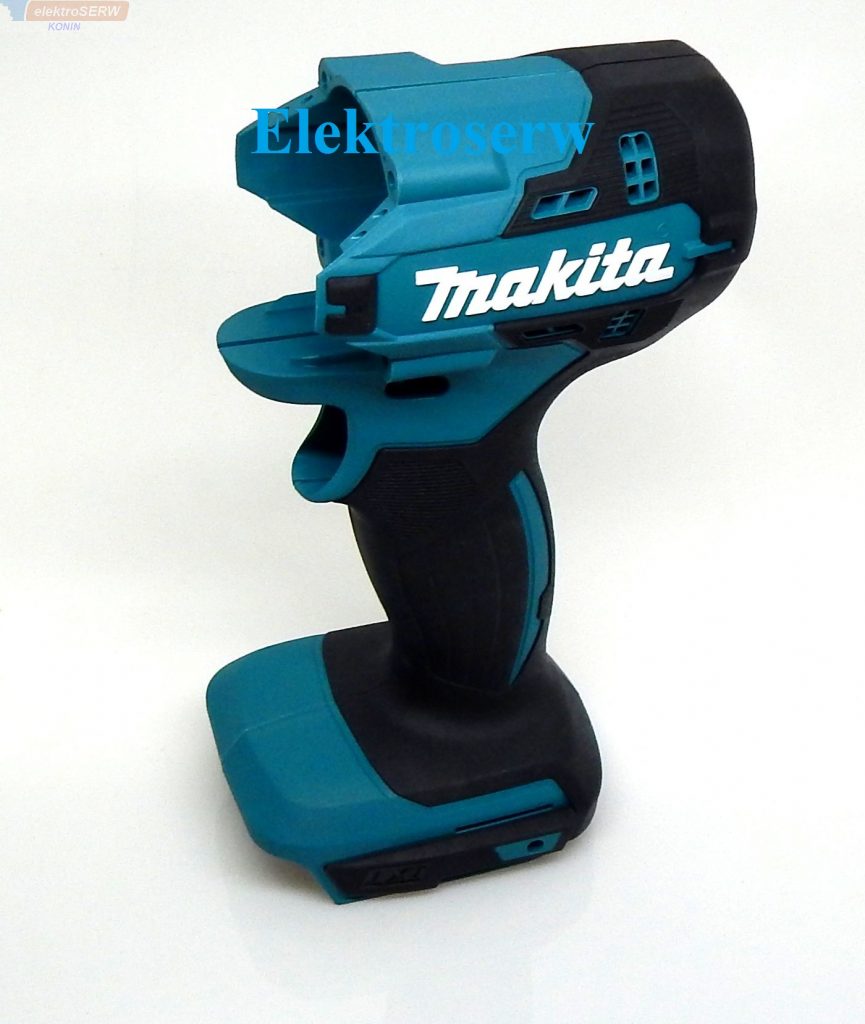

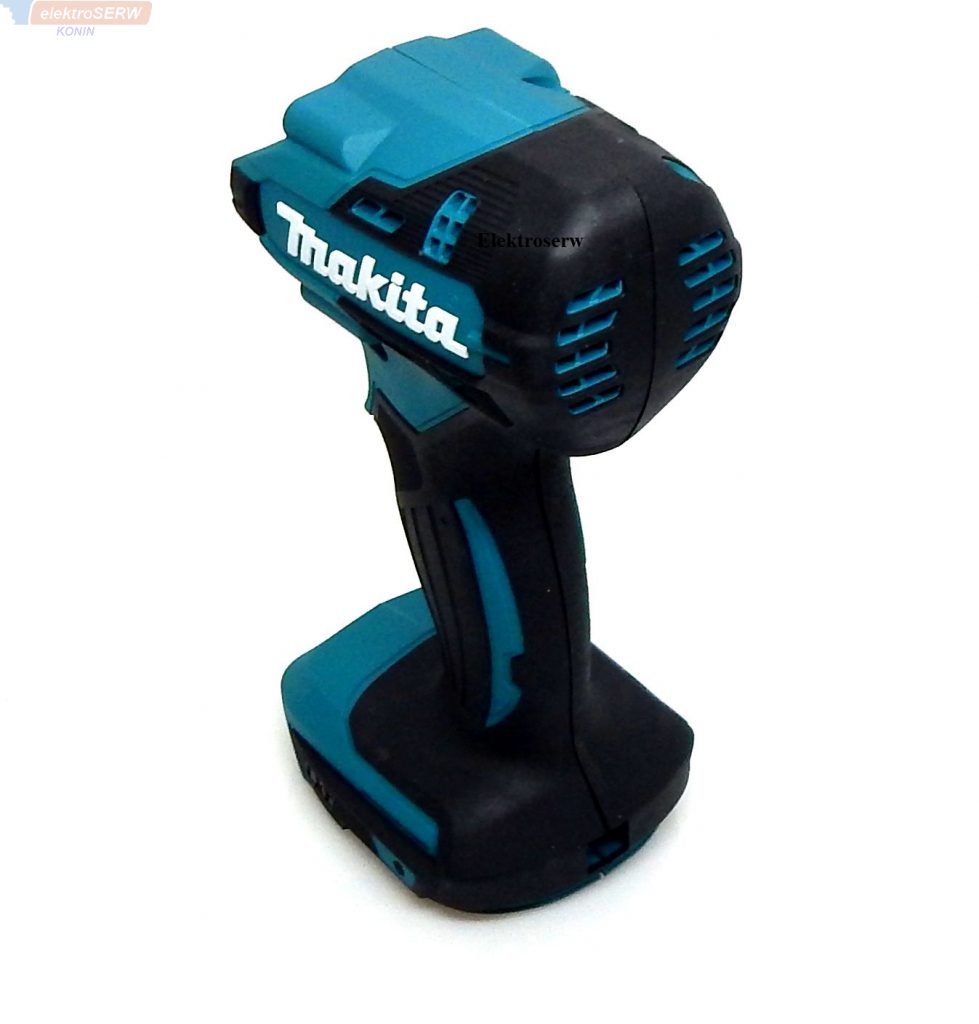

Makita - korpus - nowy oryginalny

Zastosowanie :   DTD156

• Kod producenta: 183N31-9

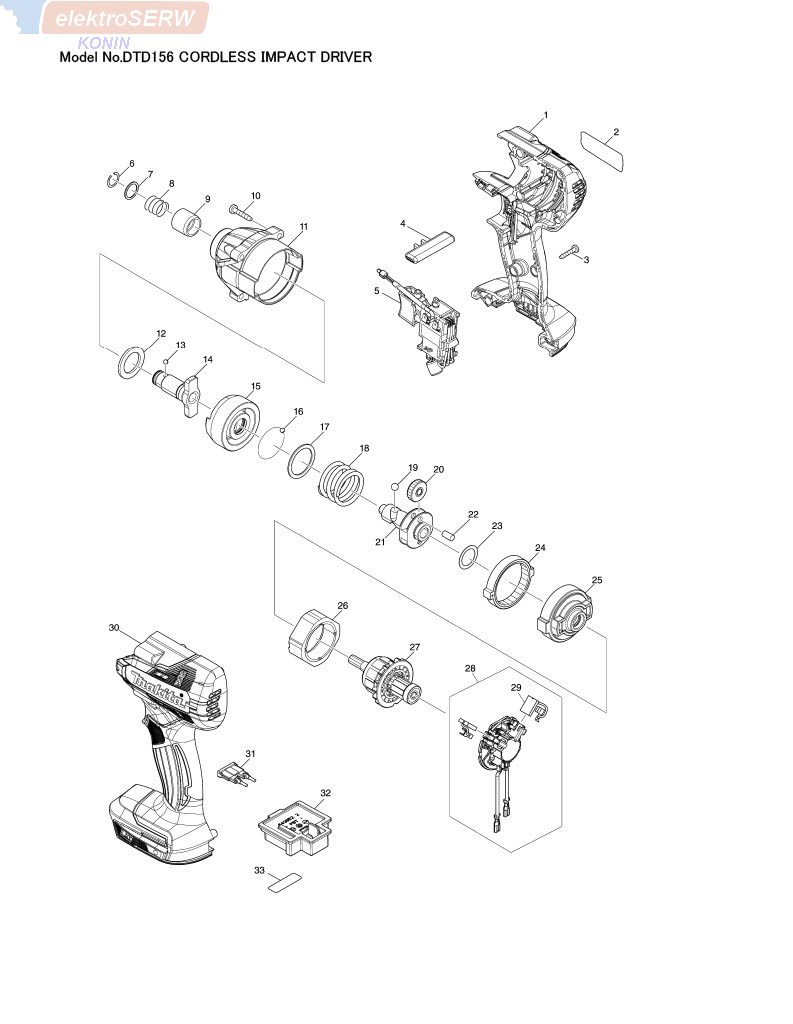

Item Sub Parts No. Parts Description Qty

1 183N31-9 HOUSING SET 1

1 C10 252126-6 HEX. LOCK NUT M4-7 2

1 C20 263005-3 RUBBER PIN 6 2

1 D10 INC. 30

2 856K77-7 DTD156 NAME PLATE 1

3 266429-2 TAPPING SCREW 3X16 8

4 452399-3 F/R CHANGE LEVER 1

5 632P57-5 SWITCH UNIT 1

6 231951-8 RING SPRING 11 1

7 267085-1 FLAT WASHER 12 1

8 233005-7 COMPRESSION SPRING 13 1

9 324420-7 SLEEVE 1

10 266374-1 TAPPING SCREW 4X25 4

11 140N57-4 HAMMER CASE COMPLETE 1

12 261151-6 NYLON WASHER 19 1

13 216040-0 STEEL BALL 3.5 2

14 326111-6 ANVIL N 1

15 326644-1 HAMMER 1

16 216040-0 STEEL BALL 3.5 24

17 267175-0 FLAT WASHER 24 1

18 233430-2 COMPRESSION SPRING 24 1

19 216041-8 STEEL BALL 5.6 2

20 227362-3 SPUR GEAR 22 2

21 326562-3 SPINDLE 1

22 256253-1 PIN 5 2

23 253314-8 THIN WASHER 15 1

24 227279-0 INTERNAL GEAR 51 1

25 144952-6 INTERNAL GEAR CASE 1

26 638396-5 YOKE UNIT 1

27 619553-4 ARMATURE 1

28 539241-6 BRUSH HOLDER ASS'Y 1

28 C10 231696-8 TORSION SPRING R 1

28 C20 231697-6 TORSION SPRING L 1

28 D10 INC. 29

29 198887-3 CARBON BRUSH CB-5 1

30 183N31-9 HOUSING SET 1

30 C10 252126-6 HEX. LOCK NUT M4-7 2

30 C20 263005-3 RUBBER PIN 6 2

30 D10 INC. 1

32 643852-2 TERMINAL 1

33 856K82-4 DTD156 SERIAL NO. LABEL 1

A01 346317-0 HOOK 1

A02 266622-8 + TRUSS HEAD SCREW M4X12 1

A03B ***DC18SD DC18SD BATTERY CHARGER 1

A03B D10 COMPO-PARTS

A04B 197600-6 BATTERY BL1830B SET 1

A10 E-08436 TWIST TORSION BIT PH2-65MM 1
