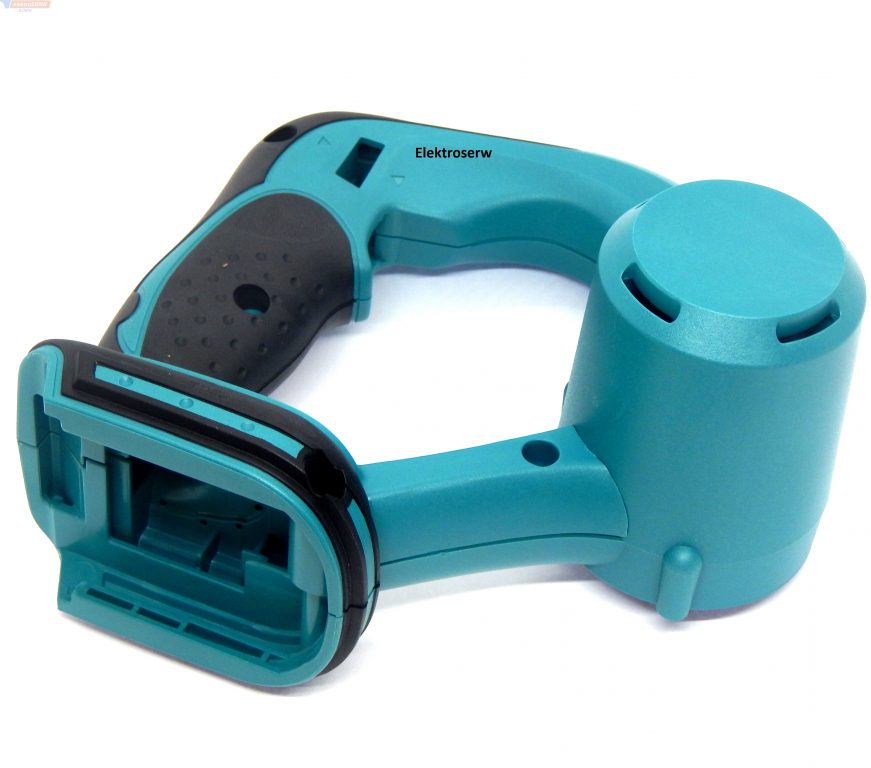

Makita OBUDOWA SILNIKA DO BUB182

Korpus silnika do dmuchawy akumulatorowej BUB182 / DUB182

• Numer katalogowy :  TP00000211

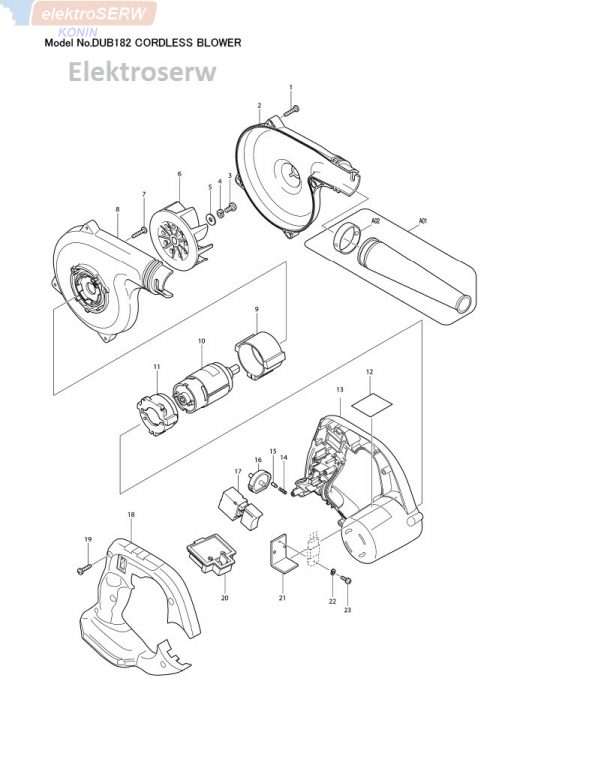

Item Sub Parts No. Parts Description Qty

1 KW00000210 TAPPING SCREW 4X18 4

2 TP00000112 FAN HOUSING SET(AS-890FHL-MK-R 1

2 D10 INC. 8

3 KW00000220 PAN HEAD SCREW M5X8 1

4 KW00000160 SPRING WASHER M5 1

5 KW00000170 FLAT WASHER 5 1

6 KW00000100 FAN AP-10302 1

7 KW00000210 TAPPING SCREW 4X18 3

8 TP00000112 FAN HOUSING SET(AS-890FHL-MK-R 1

8 D10 INC. 2

9 KW00000150 MOTOR RUBBER RING A 1

10 TP00000113 MOTOR SET (AS-890-MS18-R) 1

11 TP00000083 MOTOR RUBBER RING B 1

13 TP00000087 MOTOR HOUSING 1

013-1 TP00000166 MOTOR HOUSING 1

013-2 TP00000176 MOTOR HOUSING SET 1

013-2 D10 INC. 18

013-3 TP00000211 MOTOR HOUSING SET 1

013-3 D10 INC. 18

14 TP00000084 SPRING 1

15 TP00000085 PIN 1

16 TP00000086 DIAL 1

016-1 TP00000212 DIAL 1

17 KW00000230 SWITCH 1

017-1 TP00000165 SWITCH 1

017-2 TP00000170 SWITCH 1

017-3 TP00000174 SWITCH 1

017-4 TP00000204 SWITCH AS-890SW05-MK-R 1

017-5 TP00000209 SWITCH AS-890SW05A-MK-R 1

18 TP00000115 HANDLE COVER 18.0V 1

018-1 TP00000168 HANDLE COVER 1

018-2 TP00000176 MOTOR HOUSING SET 1

018-2 D10 INC. 13

018-3 TP00000211 MOTOR HOUSING SET 1

018-3 D10 INC. 13

19 KW00000210 TAPPING SCREW 4X18 6

20 GM00001055 BATTERY HOLDER (C2010185006) 1

020-1 GM00001116 BATTERY HOLDER (C2004185006) 1

21 KW00000200 HEAT SINK AM-10313 1

22 KW00000270 SPRING WASHER M3 1

23 TP00000081 SCREW M3X6 1

A01 132025-7 NOZZLE ASS'Y 1

A01 C10 414145-2 JOINT 1
