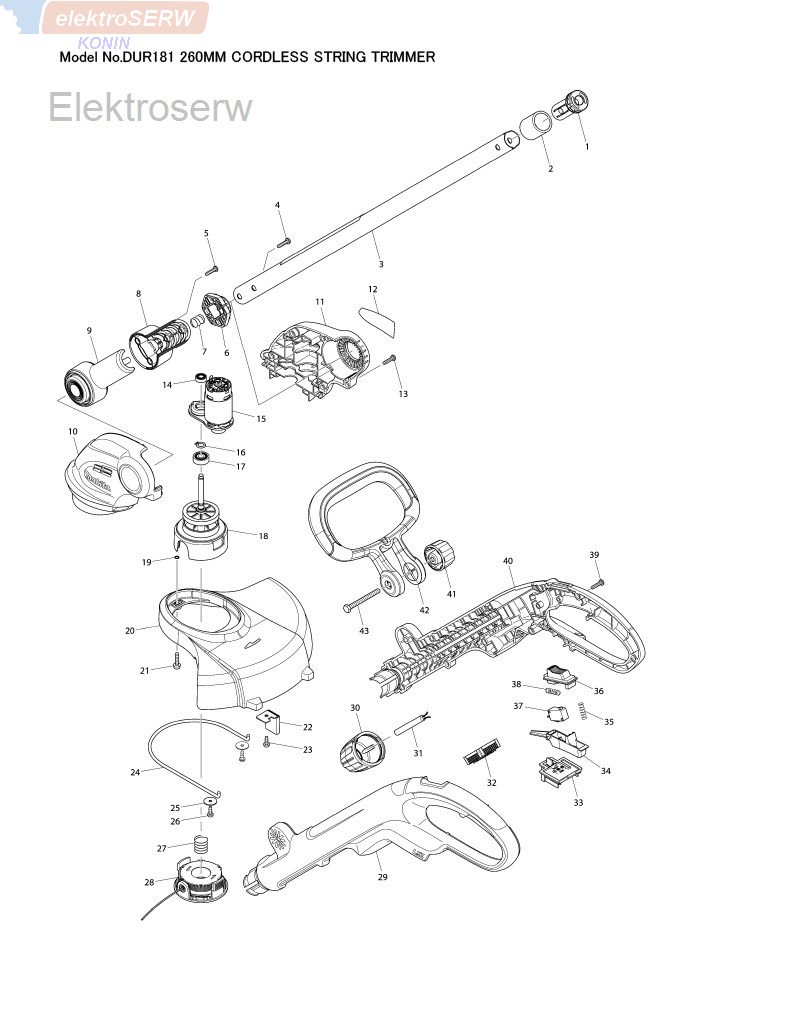

Makita DUR181 lista części

1 453357-2 PIPE CAP 1

2 422089-2 RUBBER SLEEVE 25 1

3 141339-3 PIPE25 COMPLETE 1

3 C10 890862-2 CAUTION LABEL 1

4 265995-6 TAPPING SCREW 4X18 2

5 265995-6 TAPPING SCREW 4X18 2

6 451896-6 LOCK OFF BUTTON B 1

7 231113-8 COMPRESSION SPRING 12 1

8 188870-8 PIPE HOLDER SET 1

8 D10 INC. 9

9 188870-8 PIPE HOLDER SET 1

9 D10 INC. 8

10 187413-3 MOTOR HOUSING SET 1

10 C10 263002-9 RUBBER PIN 4 2

10 C20 263005-3 RUBBER PIN 6 2

10 C30 931102-0 HEX. NUT M4 2

10 D10 INC. 11

11 187413-3 MOTOR HOUSING SET 1

11 C10 263002-9 RUBBER PIN 4 2

11 C20 263005-3 RUBBER PIN 6 2

11 C30 931102-0 HEX. NUT M4 2

11 D10 INC. 10

12 815V40-5 DUR181 NAME PLATE 1

13 265995-6 TAPPING SCREW 4X18 5

14 210006-2 BALL BEARING 696ZZ 1

15 629932-8 DC MOTOR 1

16 961004-6 RETAINING RING S-8 1

17 211032-4 BALL BEARING 608ZZ 1

18 141338-5 GEAR SHAFT COMPLETE 1

18 C10 227283-9 SPUR GEAR 48 1

18 C20 266744-4 + PAN HEAD SCREW M4X8 1

18 C30 326159-8 GEAR SHAFT 1

18 C40 453360-3 SPOOL HOLDER 1

19 213023-1 O RING 4 2

20 453353-0 SAFETY COVER 1

21 911139-3 PAN HEAD SCREW M4X20 WG 2

22 123169-4 CORD CUTTER ASSEMBLY 1

23 266020-6 TAPPING SCREW 4X12 1

24 326128-9 WIRE GUARD 1

25 267071-2 FLAT WASHER 4 2

26 266020-6 TAPPING SCREW 4X12 2

27 231352-0 COMPRESSION SPRING 17 1

28 196146-9 SPOOL SET 1

028-1 195858-1 SPOOL SET 1

29 187416-7 HANDLE SET 1

29 C10 263005-3 RUBBER PIN 6 2

29 D10 INC. 40

30 453344-1 LOCK SLEEVE 1

31 699058-0 POWER SUPPLY CORD UNIT 1

32 620112-9 CONTROLLER 1

33 643852-2 TERMINAL 1

34 453338-6 SWITCH LEVER 1

35 233068-3 COMPRESSION SPRING 6 1

36 453339-4 LOCK OFF LEVER 1

37 651891-8 SWITCH V-15-3A6 1

38 233068-3 COMPRESSION SPRING 6 1

39 265995-6 TAPPING SCREW 4X18 11

40 187416-7 HANDLE SET 1

40 C10 263005-3 RUBBER PIN 6 2

40 D10 INC. 29

41 264072-1 THUMB NUT M6 1

42 453340-9 FRONT GRIP 1

43 921382-6 HEX. BOLT M6X60 1

A01 125516-5 BAND ASSEMBLY 1

A02 195246-2 SAFETY GOGGLE 1

A03 196148-5 NYLON CORD 1.65-15M SET 1
