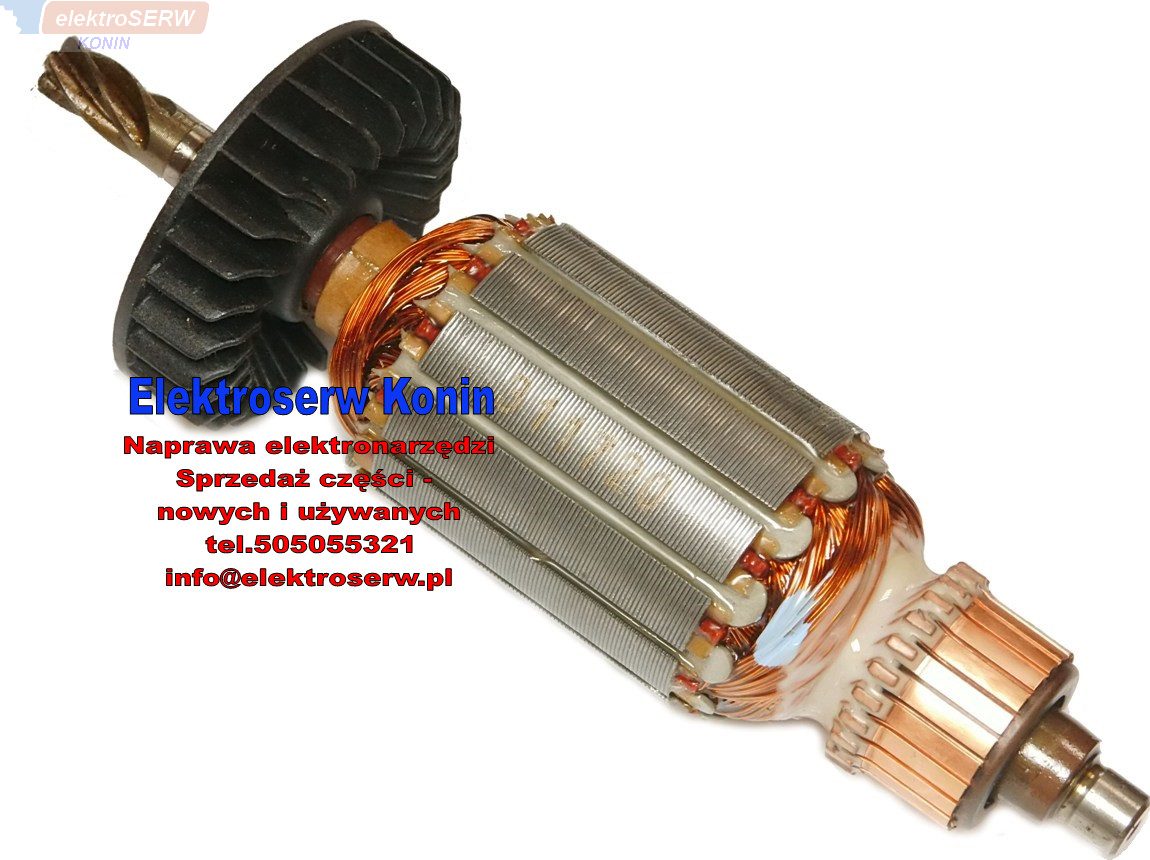

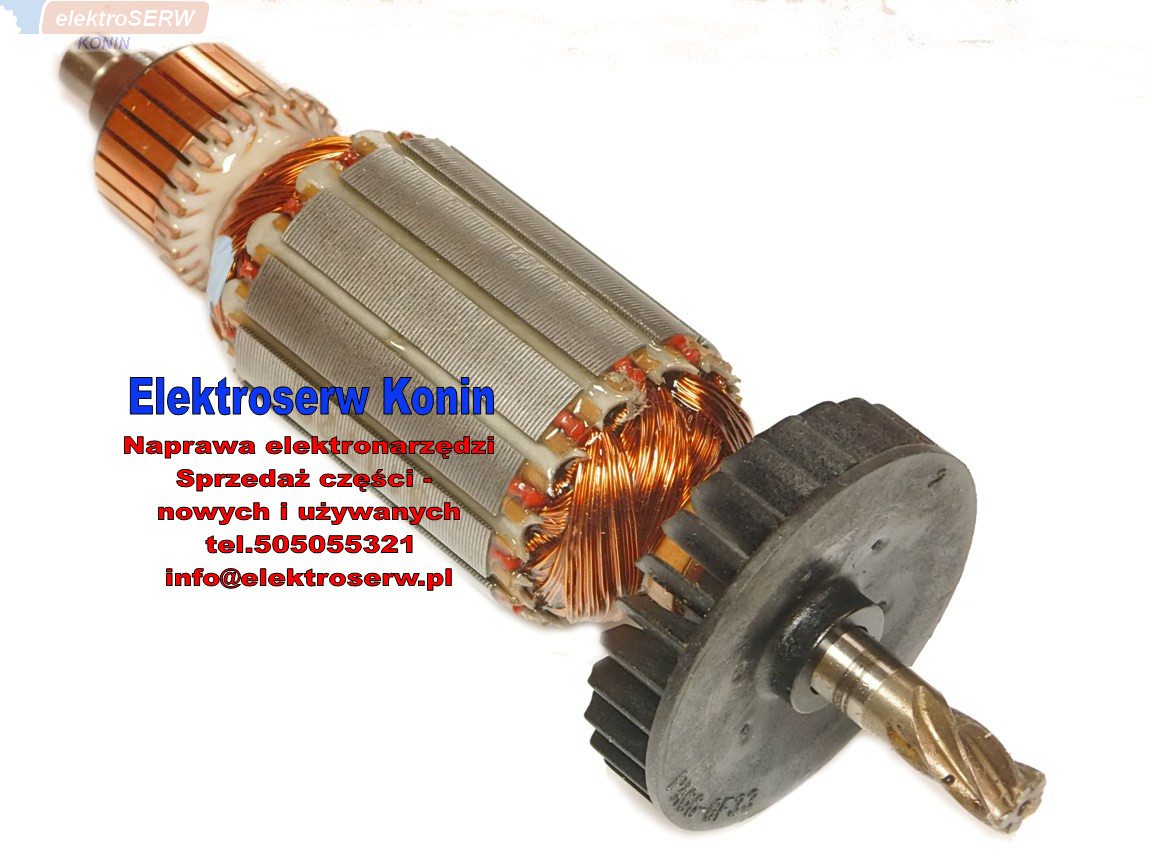

Hitachi wirnik 360-720E DH24PC3 DH24PB3
Hitachi - wirnik - nowy oryginalny.
Nr katalogowy : 360-720E
Pozycja nr 62.
Zastosowanie: DH24PC3, DH24PB3,

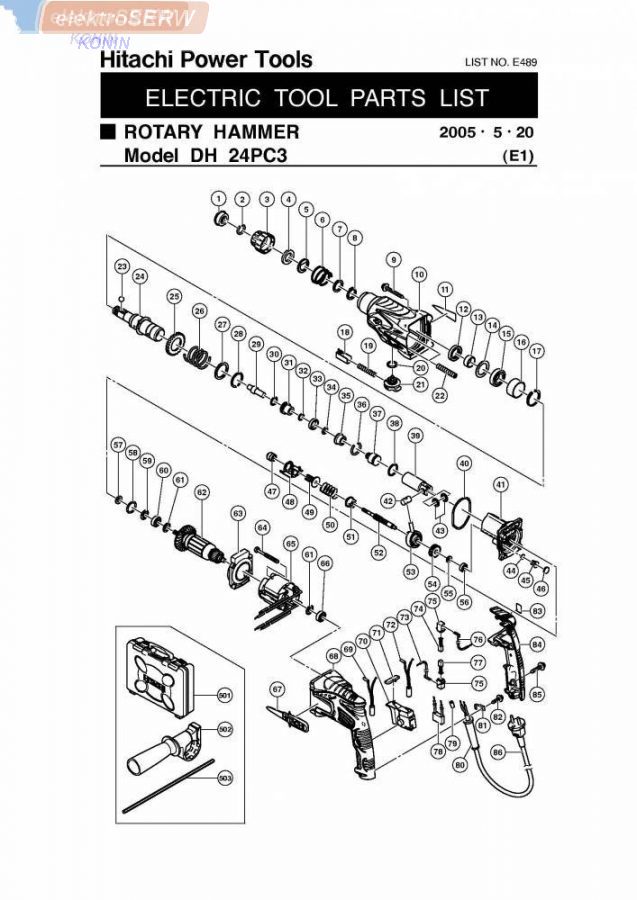

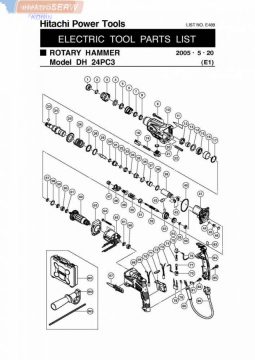

Poniżej lista części do wiertarki DH24PC3.
Przy zapytaniu o cenę prosimy o podanie pozycji na schemacie lub numer katalogowy części.
| Pozycja na schemanie | Nr katalogowy | Opis | Ilość |
| 1 | 306-345 | FRONT CAP | 1 |
| 2 | 306-340 | STOPPER RING | 1 |
| 3 | 324-527 | GRIP | 1 |
| 4 | 324-528 | BALL HOLDER | 1 |
| 5 | 324-526 | HOLDER PLATE | 1 |
| 6 | 322-812 | HOLDER SPRING | 1 |
| 7 | 984-118 | WASHER (B) | 1 |
| 8 | 939-547 | RETAINING RING FOR D20 SHAFT (10 PCS.) | 1 |
| 9 | 301-654 | TAPPING SCREW (W/FLANGE) D5X35 | 4 |
| 10 | 324-605 | GEAR COVER ASS'Y | 1 |
| 12 | 307-688 | OIL SEAL | 1 |
| 13 | 322-815 | SLEEVE | 1 |
| 14 | 323-232 | FELT PACKING (B) | 1 |
| 15 | 690-4DD | BALL BEARING 6904DDPS2L | 1 |
| 16 | 324-522 | SLEEVE(A) | 1 |
| 17 | 322-813 | RETAINING RING 37MM | 1 |
| 18 | 324-530 | PUSHING BUTTON | 1 |
| 19 | 317-223 | PUSHING SPRING | 1 |
| 20 | 878-885 | O-RING (S-18) | 1 |
| 21 | 324-603 | CHANGE LEVER | 1 |
| 22 | 317-238 | SPRING (B) | 2 |
| 23 | 959-156 | STEEL BALL D7.0 (10 PCS.) | 1 |
| 24 | 323-184 | CYLINDER | 1 |
| 25 | 323-185 | SECOND GEAR | 1 |
| 26 | 317-233 | SPRING (A) | 1 |
| 27 | 317-234 | WASHER (A) | 1 |
| 28 | 317-235 | RETAINING RING D30 | 1 |
| 29 | 324-525 | SECOND HAMMER | 1 |
| 30 | 944-486 | O-RING (1AP-20) | 1 |
| 31 | 324-523 | HAMMER HOLDER | 1 |
| 32 | 322-802 | O-RING (B) | 1 |
| 33 | 322-805 | DAMPER (A) | 1 |
| 34 | 322-808 | O-RING (C) | 1 |
| 35 | 324-524 | DAMPER HOLDER | 1 |
| 36 | 322-807 | STOPPER RING | 1 |
| 37 | 324-535 | STRIKER | 1 |
| 38 | 322-834 | O-RING (I.D. 16) | 1 |
| 39 | 324-534 | PISTON | 1 |
| 40 | 322-793 | O-RING (I.D. 66.5) | 1 |
| 41 | 324-542 | INNER COVER ASS'Y | 1 |
| 42 | 322-798 | PISTON PIN | 1 |
| 43 | 322-799 | WASHER (C) | 2 |
| 44 | 324-543 | FELT PACKING (A) | 1 |
| 45 | 324-545 | VALVE | 1 |
| 46 | 324-544 | FELT PACKING (B) | 1 |
| 47 | 323-249 | PINION SLEEVE | 1 |
| 48 | 318-522 | LOCK PLATE | 1 |
| 49 | 323-181 | SECOND PINION | 1 |
| 50 | 323-182 | CLUTCH SPRING | 1 |
| 51 | 324-606 | CLUTCH | 1 |
| 52 | 323-180 | SECOND SHAFT | 1 |
| 53 | 324-533 | RECIPROCATING BEARING | 1 |
| 54 | 322-797 | FIRST GEAR | 1 |
| 55 | 322-795 | SPACER | 1 |
| 56 | 626-VVM | BALL BEARING 626VVC2PS2L | 1 |
| 57 | 322-816 | FELT PACKING | 1 |
| 58 | 876-796 | O-RING (P-22) | 1 |
| 59 | 322-818 | PACKING WASHER | 1 |
| 60 | 608-DDM | BALL BEARING 608DDC2PS2L | 1 |
| 61 | 982-631 | WASHER (A) | 2 |
| 62 | 360-720U | ARMATURE ASS'Y 110V-120V | 1 |
| 62 | 360-720E | ARMATURE 220V-230V | 1 |
| 62 | 360-720F | ARMATURE 240V | 1 |
| 63 | 324-531 | FAN GUIDE | 1 |
| 64 | 961-672 | HEX. HD. TAPPING SCREW D4X50 | 2 |
| 65 | 340-635C | STATOR 110V-120V | 1 |
| 65 | 340-635E | STATOR 220V-230V | 1 |
| 65 | 340-635F | STATOR 240V | 1 |
| 66 | 608-VVM | BALL BEARING 608VVC2PS2L | 1 |
| 67 | 324-604 | HITACHI PLATE | 1 |
| 68 | 324-553 | HOUSING | 1 |
| 69 | 324-549 | CHOKE COIL (A) BROWN | 1 |
| 69 | 324-550 | CHOKE COIL (A) BROWN | 1 |
| 70 | 324-536 | SWITCH (1P PILLAR TYPE) | 1 |
| 71 | 322-853 | PUSHING BUTTON | 1 |
| 72 | 324-551 | CHOKE COIL (A) BLUE | 1 |
| 72 | 324-552 | CHOKE COIL (A) BLUE | 1 |
| 73 | 324-538 | INTERNAL WIRE (A) (BLUE) | 1 |
| 74 | 999-041 | CARBON BRUSH (1 PAIR) | 1 |
| 75 | 955-203 | BRUSH HOLDER | 2 |
| 76 | 324-537 | INTERNAL WIRE (A) (BROWN) | 1 |
| 77 | 999-072 | CARBON BRUSH (AUTO STOP TYPE) (1 PAIR) | 1 |
| 78 | 994-273 | NOISE SUPPRESSOR | 1 |
| 79 | 981-373 | TUBE (D) | 2 |
| 80 | 953-327 | CORD ARMOR D8.8 | 1 |
| 80 | 938-051 | CORD ARMOR D10.1 | 1 |
| 81 | 937-631 | CORD CLIP | 1 |
| 82 | 984-750 | TAPPING SCREW (W/FLANGE) D4X16 | 2 |
| 84 | 324-554 | HANDLE COVER | 1 |
| 85 | 301-653 | TAPPING SCREW (W/FLANGE) D4X20 (BLACK) | 3 |
| 86 | 500-390Z | CORD | 1 |
| 86 | 500-446Z | CORD | 1 |
| 86 | 500-465Z | CORD | 1 |
| 86 | 500-235Z | CORD | 1 |
| 86 | 500-245Z | CORD | 1 |
| 86 | 500-249Z | CORD | 1 |
| 86 | 500-408Z | CORD | 1 |
| 86 | 500-424Z | CORD | 1 |
| 86 | 500-456Z | CORD | 1 |
| 86 | 500-440Z | CORD | 1 |
DH24PB3
| 2 | 306340 | STOPPER RING |
| 3 | 324527 | GRIP |
| 4 | 324528 | BALL HOLDER (OLD 322810) |
| 5 | 324526 | HOLDER PLATE (OLD 322811) |
| 6 | 322812 | HOLDER SPRING |
| 7 | 984118 | WASHER (B) |
| 8 | 939547 | RETAINING RING FOR D20 (1 PCS) |
| 9 | 301654 | TAPPING SCREW D5X35 (W/FLANGE) |
| 10 | 324546 | GEAR COVER |
| 12 | 307688 | OIL SEAL 24X34X6 |
| 13 | 322815 | SLEEVE |
| 14 | 6904DD | BALL BEARING 6904DDPS2L |
| 15 | 324522 | SLEEVE (A) |
| 16 | 322813 | RETAINING RING 37MM |
| 17 | 324530 | PUSHING BUTTON |
| 18 | 317223 | PUSHING SPRING |
| 19 | 878885 | O-RING (S-18) |
| 21 | 959156 | STEEL BALL D7.0 (1 PCS) |
| 22 | 322814 | CYLINDER |
| 23 | 301677 | SECOND GEAR |
| 24 | 301678 | SPRING (A) |
| 25 | 301679 | WASHER (A) |
| 26 | 948310 | RETAINING RING FOR D30 SHAFT |
| 27 | 324525 | SECOND HAMMER (OLD 322803) |
| 28 | 944486 | O-RING (1AP-20) |
| 29 | 324523 | HAMMER HOLDER |
| 30 | 322802 | O-RING (B) |
| 31 | 322805 | DAMPER (A) |
| 32 | 322808 | O-RING (C) |
| 33 | 324524 | DAMPER HOLDER (OLD 322806) |
| 34 | 322807 | STOPPER RING |
| 35 | 324535 | STRIKER (OLD 322801) |
| 36 | 322834 | O-RING (I.D.16) |
| 37 | 324534 | PISTON |
| 38 | 322793 | O-RING |
| 39 | 324542 | INNER COVER ASS'Y |
| 40 | 322798 | PISTON PIN |
| 41 | 322799 | WASHER (C) |
| 42 | 324543 | FELT PACKING (A) |
| 43 | 324545 | VALVE |
| 44 | 324544 | FELT PACKING (B) |
| 45 | 322795 | SPACER |
| 46 | 322796 | SPRING (B) |
| 47 | 322794 | SECOND SHAFT |
| 48 | 301659 | WASHER (B) |
| 49 | 301660 | CLUTCH SPRING |
| 50 | 324532 | CLUTCH (OLD 301661) |
| 51 | 324533 | RECIPROCATING BEARING |
| 52 | 322797 | FIRST GEAR |
| 53 | 626VVM | BALL BEARING 626VVMC2ERPS2S |
| 54 | 322816 | FELT PACKING |
| 55 | 876796 | O-RING (P-22) |
| 56 | 322818 | PACKING WASHER |
| 57 | 608DDM | BALL BEARING 608DDMC2EPS2S |
| 58 | 982631 | WASHER (A) |
| 59 | 360720E | ARMATURE 220-230 VOLT |
| 59 | 360720U | ARMATURE ASS'Y 110 -120 VOLT |
| 59 | 324552 | CHOKE COIL (A) BLEU 110 VOLT |
| 60 | 324531 | FAN GUIDE |
| 61 | 961672 | HEX.HD. TAPPING SCREW D4X50 |
| 62 | 340635C | STATOR 110-120 VOLT |
| 62 | 340635E | STATOR 220-230 VOLT |
| 63 | 608VVM | BALL BEARING 608VVMC2EPS2L |
| 64 | 324539 | HITACHI PLATE |
| 65 | 324553 | HOUSING |
| 66 | 324550 | CHOKE COIL (A) BROWN 110 VOLT |
| 66 | 324549 | CHOKE COIL (A) BROWN |
| 68 | 322853 | PUSHING BUTTON |
| 69 | 324551 | CHOKE COIL (A) BLEU |
| 70 | 324538 | INTERNAL WIRE (A) BLUE |
| 71 | 999041 | CARBON BRUSH (1 PAIR) |
| 72 | 955203 | BRUSH HOLDER |
| 73 | 324537 | INTERNAL WIRE (A) BROWN |
| 74 | 999072 | CARBON BRUSH A.S. TYPE (OLD 999080) |
| 75 | 930039 | NOISE SUPPRESSOR |
| 76 | 981373 | TUBE (D) |
| 77 | 953327 | CORD ARMOR D8.8 |
| 77 | 938051 | CORD ARMOR D10.1 (OLD 994565) |
| 78 | 937631 | CORD CLIP (OLD 994566) |
| 79 | 984750 | TAPPING SCREW D4X16 (W/FLANGE) |
| 81 | 324554 | HANDLE COVER |
| 82 | 301653 | TAPPING SCREW D4X20 (W/FLANGE) BLACK (OLD 305095) |
| 83 | 500424Z | @ CORD FOR SINZ KUW |
| 83 | 500239Z | @ CORD FOR THA |
| 83 | 500440Z | CORD 5M 2 X 1,0 W/PLUG 13A/250V FOR GBR |
| 83 | 500391Z | CORD FOR SWISS |
| 601 | 981840 | GREASE (FG-6A) (30G) |
| 602 | 308471 | GREASE FOR HAMMER.HAMMER DRILL (70G) |
| 603 | 980927 | GREASE FOR IMPACT DRILL (FG-6A) (500G) |
| 606 | 986803 | @ DUST COVER |
| 607 | 986804 | SEAL COVER NEW |
| 608 | 948310 | RETAINING RING FOR D30 SHAFT |
| 609 | 958063 | WASHER (OLD 958063P) |
| 610 | 959150 | STEEL BALL D6.35 (10 PCS) |
| 611 | 986805 | OUTER RACE NEW |
| 612 | 986806 | SOCKET |
| 613 | 306910 | SOCKET ADAPTOR (B) |
| 674 | 981122 | SPECIAL SCREW M6X22 |
